Auto Cutting Machine
Auto Cutting Machine

According to the market demand and technical development direction of recycling plastic products, we design an advanced Aut-o Cutting Machine (Plastic Cutter) which replaces traditional plastic cutting processing method. It will be exponentially increase
productivity and it is applicable for large plastic products, film and agricultural pipe cutting. High efficiency, greatly reducing lab-or cost. Its production capacity is 2-4 Tons per hour.


Structure Features:

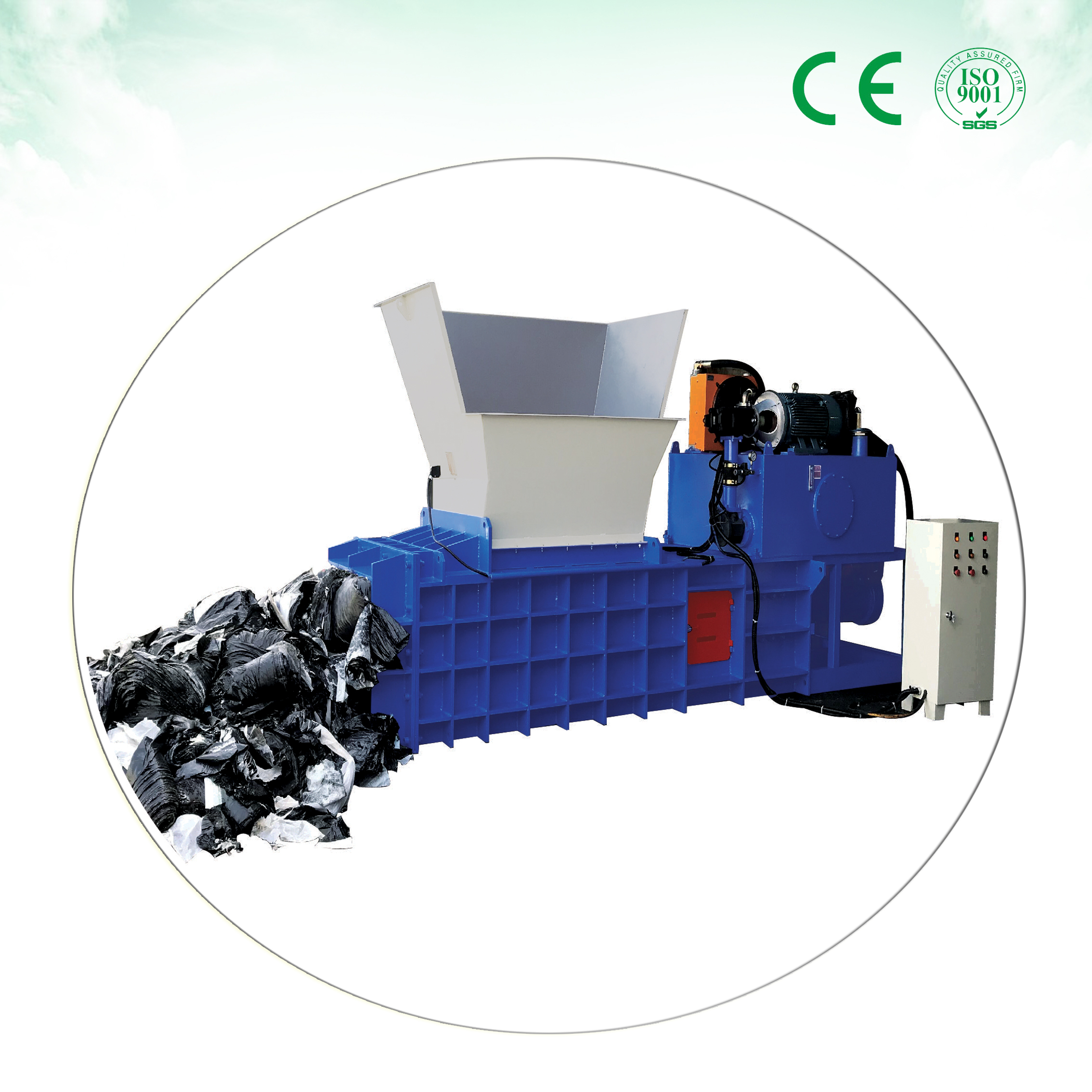

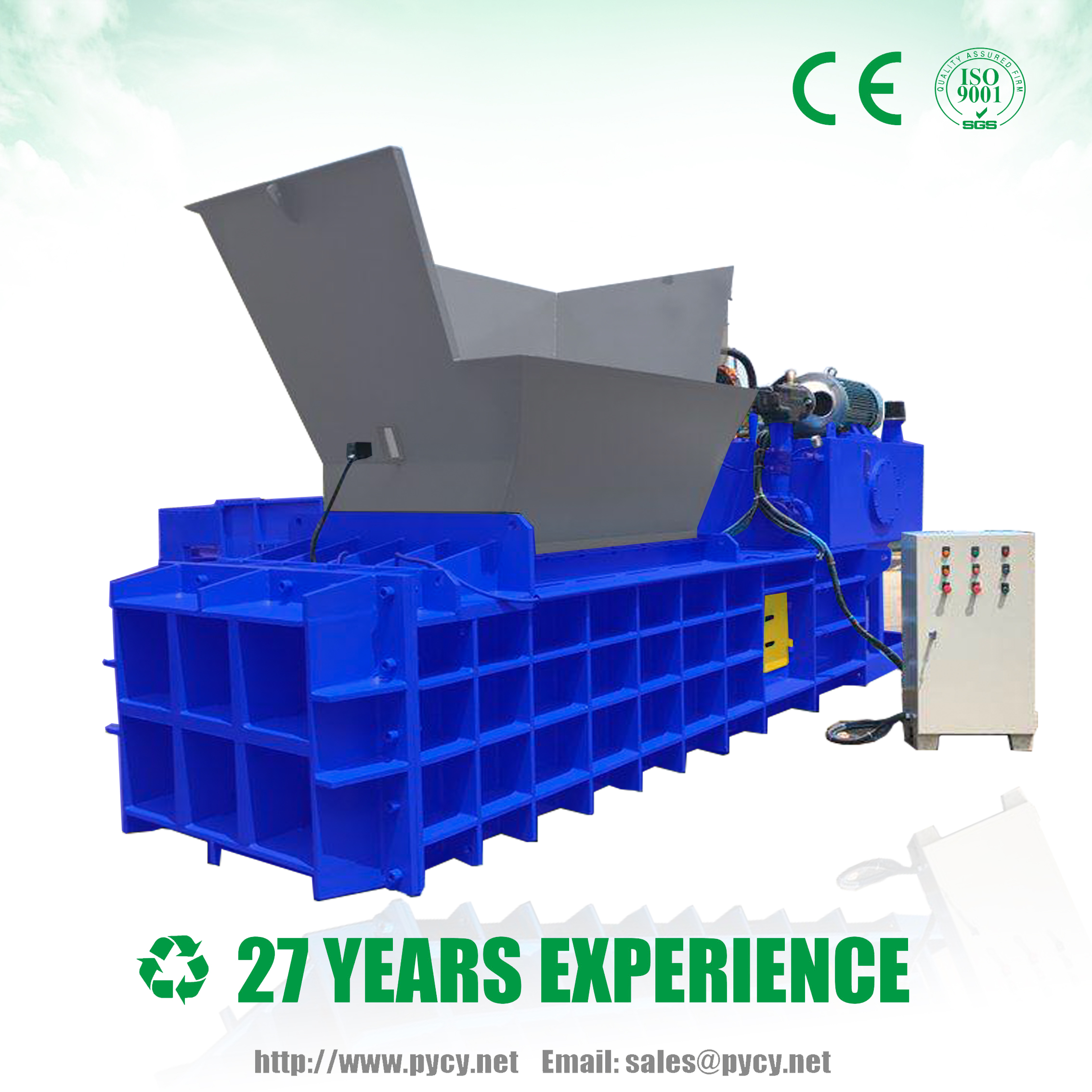

Horizontal Auto Cutting Machine mainly includes feeding hopper, hydraulic cylinder, cutting chamber and electric box etc. the
inside of cutting chamber is equipped with
a scissors guide slot and pre-pressing guide slot, and the cutting parts includes fixed
knife
base, cutting base, pushing material base plate and pre-pressing base. Rotor knife adjustable base is at the bottom of fix
knife base and bed knife is set on there.
The pushing plate is set on the top surface of cutting bottom plate. The cutting base is
between the two relative side plates at the bottom of cutting chamber.
Cutting base is with cutter and the cutting guide plates
are on both sides of it. Protruding pushing bottom plate is at the bottom of cutting
base. Cutting guide plate is inside of cuttin-g guide slot and pre-pressing guide plate is inside of pre-pressing guide slot. This unique and reasonable design structure can
greatly improve traditional cutter efficiency and avoid processing materials splashed out for safety. And make the thin materials
which entered into cutting chamber and pre-pressing guide plate and cutting guide plate to change easier.



1. High auto program and very simple and convenient operation.

2. Stable operation, stronger cutting force for high efficiency and energy saving.

3. Unique design and sturdy structure for safety and practical.

4. Advanced hydraulic control technology for auto feeding, pushing materials and cutting.

5. Faster speed and high efficiency to greatly reduce labor costs.

6. Japanese Mitsubishi PLC control box with manual and auto conversing function

7. Special universal connecting device at the front of cylinder rod can effectively protect cylinder rod not broken.

8. Feeding hopper with pressing cover can be feeding automatically. And the materials are cut along pressing cover to push
main cutting machine.



Specification

Model ACT-120 ACT-150
Chamber Size(mm) 914*700 1100*830
Motor Power(KW) 30 37
Oil Pump 4525A30V50 4535A30V50
 Overall Size(L*W*H  mm) 5020(L)*1247(W)*2900(H) 8000(L)*1950(W)*2500(H)

Above specifications are subject to change without any notice.
