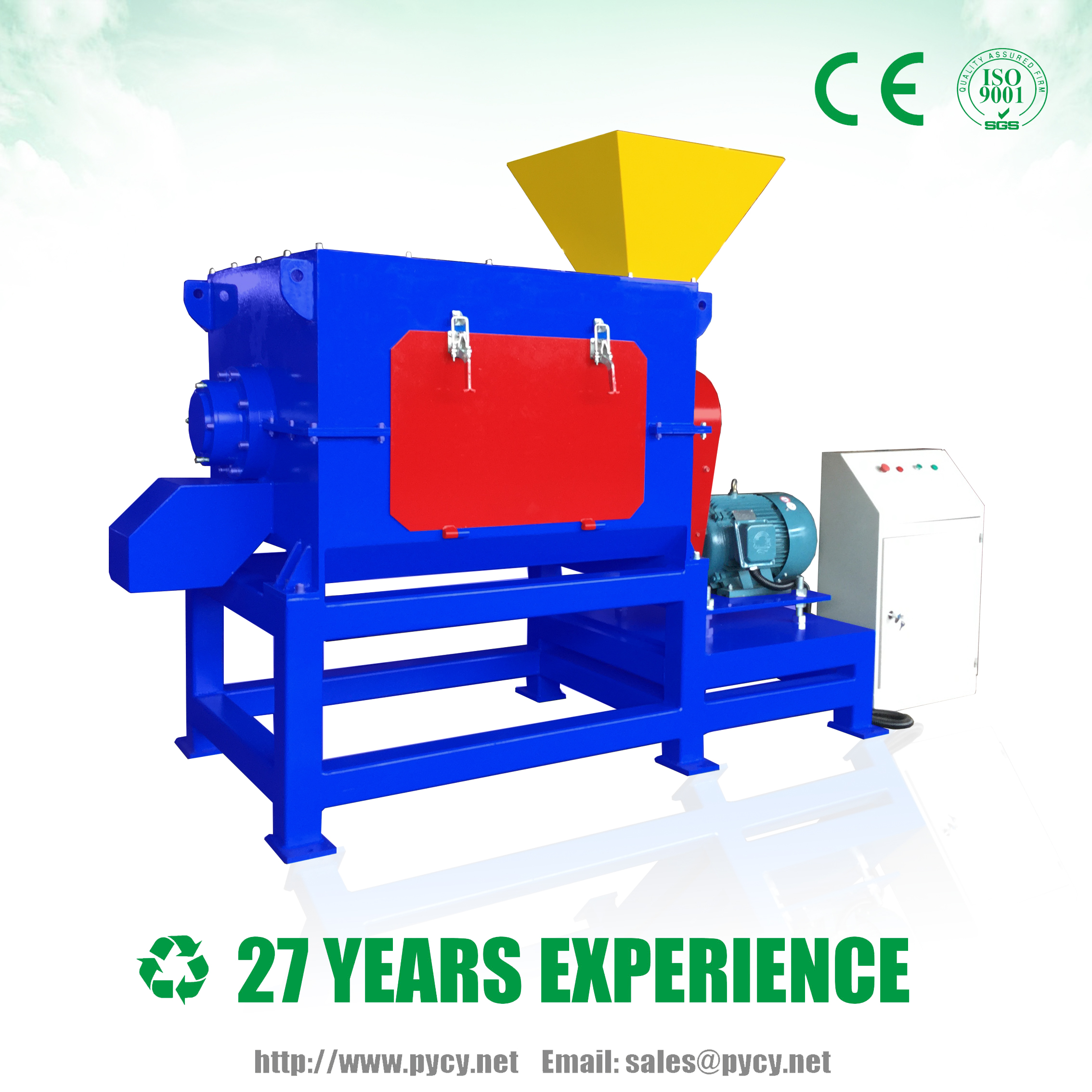

It is mainly applicable for waste plastic flake and granular material etc soft plastic and used for waste materials dewatering after crushed.
It is usually used in the plastic washing line with other equipments. Production capacity is from 1000KGS to 1500KGS per hour.
It is with full auto dewatering, high production, good dewatering effect and easy to install.
The equipment is more economical than the early centrifuge dewatering machine and more convenient to operate.
Dewatering and discharging are carried out synchronously. No need wait for dewatering finished to take out the materials. Well suited to use with other equipments.
It is one of common plastic washing equipments.
Applications:
It is applicable for dewatering and drying of waste recycled materials such as plastic pellets (PET bottle, ABS plastic,
PVC flake, PE hard material) and other hard plastic, flake, all kinds of film materials, plastic bottles and PET, ABS, PC, PS, PA, PP, PE, PVC, and
using the whole net horizontal dewatering machine to dewater, the effect is better.
1. Special used for waste plastic flakes and granular materials washing and dewatering, easy to operate, safety and reliable.
2. High dewatering rate (above 97%), low energy consumption, high efficiency and reduce labor cost.
3. Very clean dewatering and can wash and dewater particles, sands etc sundries in plastic flake.
4. Reasonable design, look nicer, small wear, low noise and safety.
5. Dual outlet design, save the time and labor, reduce the labor cost.
6. Unique design, simple structure, convenient to detach and easy to clean up.
7. Pure copper wire motor, stronger power, long lifetime.
8. High quality stainless steel screen mesh can be customized according to customer requirements.
9. Full carbon steel welding to ensure the machine without leakage welding, sturdy and durable.
10. The protection system which is equipped with motor overload and power supply will cut off automatically when abnormal running and ensure operation safety.
11. Can be used for high-speed dewatering of various waste materials such as sinking and floating materials and plastic pellets.
Specification
| Model | Capacity （KGS/Hr） |
Rotor Size (Φ*L, mm) |
Motor Power (KW) |
Rotor Speed (r/min.) |
Machine Size (L*W*H mm) |
Weight （KGS） |
| HD-600 | Appr.1000 to 1500 | Φ600*1200 | 22/30 | 1450 | 2560*1000*2000 | 2300 |
| HD-800 | Appr.2000 to 2500 | Φ800*1800 | 45 | 1450 | 2815*1960*2320 | 3800 |
Above specifications are subject to change without any notice.
