Plastic Dewatering Machine

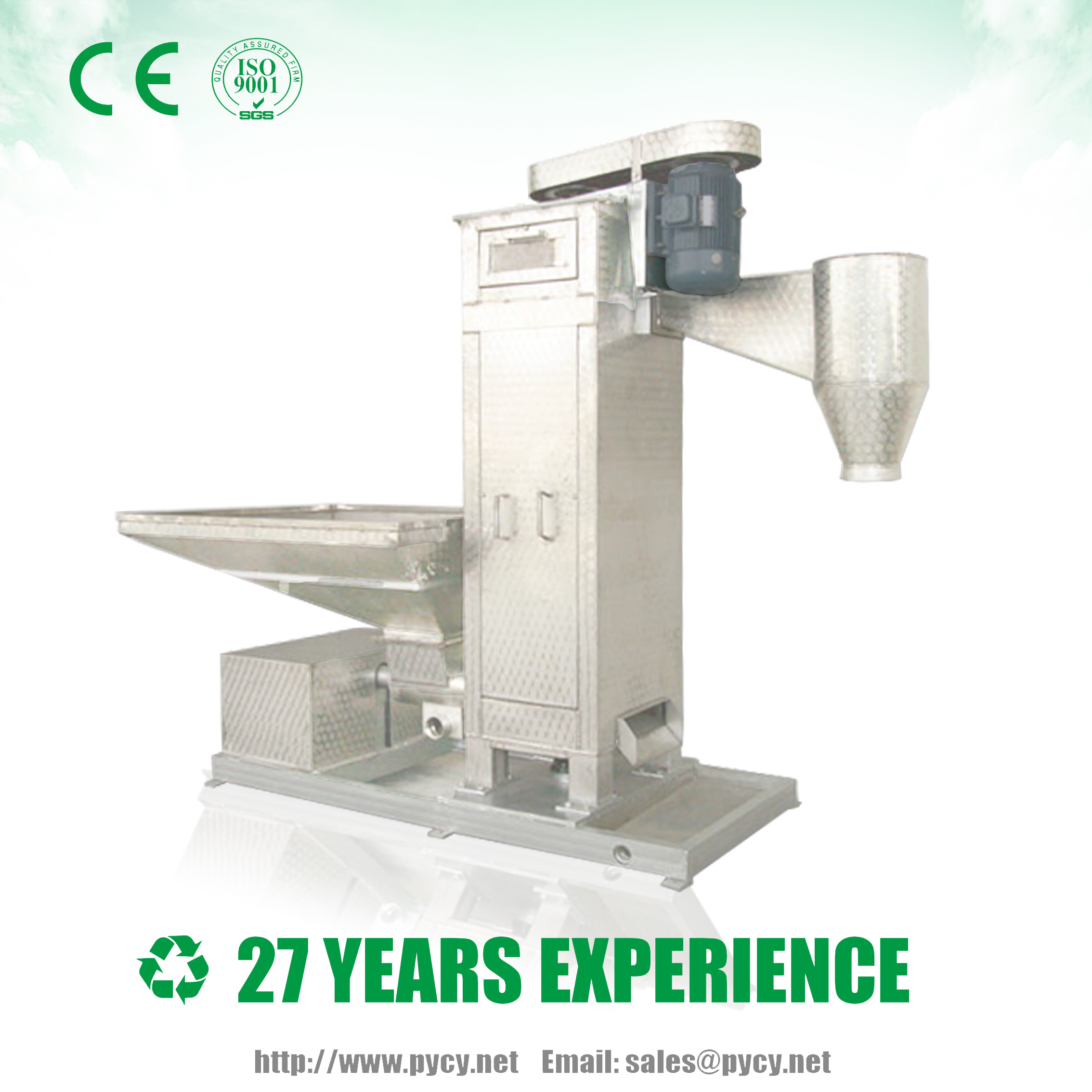

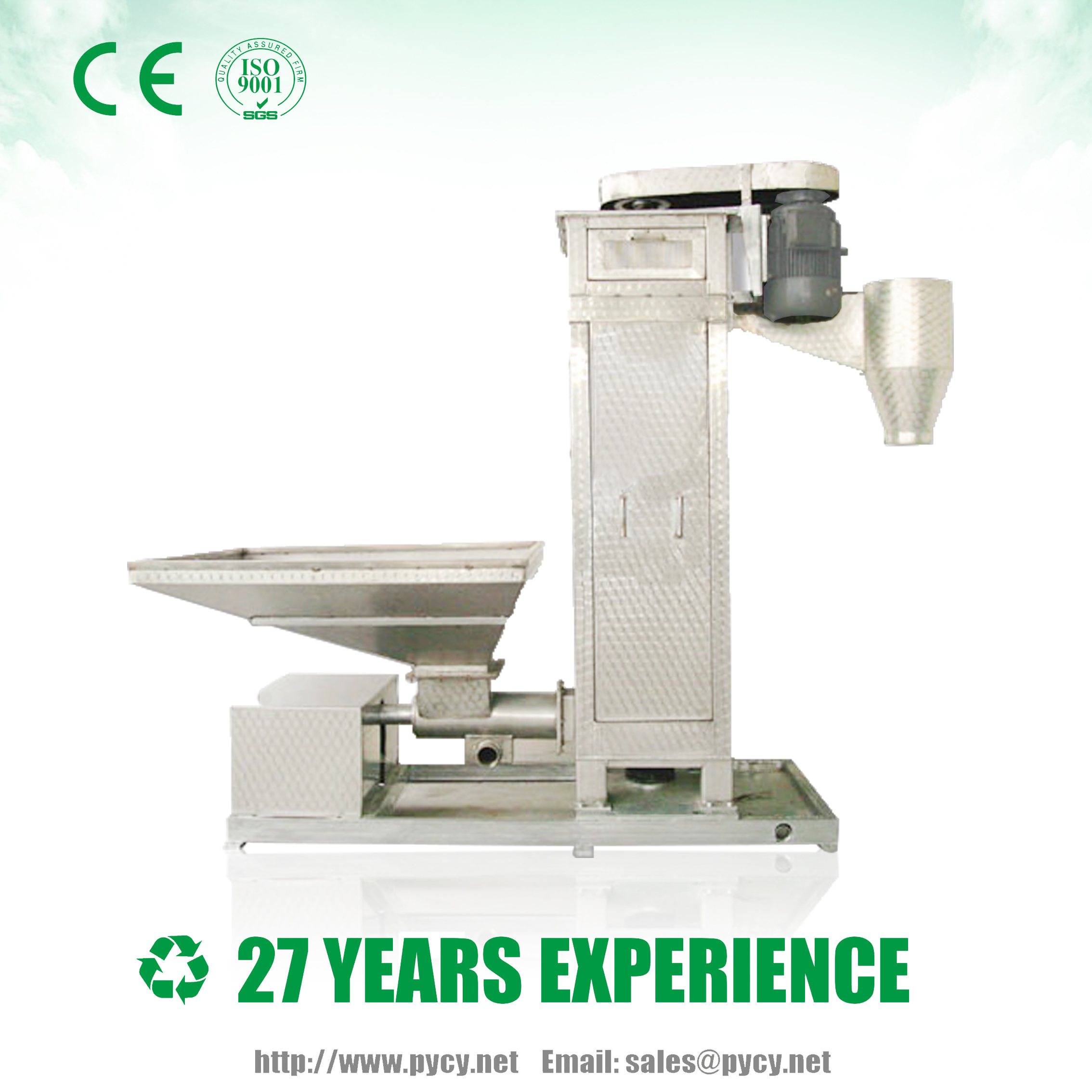

Vertical Dewatering Machine

It is necessary equipment for plastic recyclingwashing and pelletizing with low energy consumption, low noise, durability, high dewatering efficiency, small footprint and good dewatering effect. It is applicable for all kinds of crushing waste materials (plastic flakeswashing and dewatering, such as pellet materialsflake materials, plastic molding materialsrubber materials and so on. Horizontal type also can be applicable, but the dewatering rate of vertical type is higher. After all, the vertical type is rotated from the upper to the lower and forced auto feeding and discharging to reduce labor cost.


Applications:

It is mainly applicable for plastic pellets in various industries such as PE pellets, PET pellets, ABS granulating pellets, film granulating materials, metal wires and all kind of flake materials etc.

1. Auto operation, convenient, safe and reliable. And can quickly dewater the moisture of waste materials, good dewatering effect and high production.

2. The protection system which is equipped with motor overload and power supply will cut off automatically when abnormal running and ensure operation safety.

3. #304 stainless steel materials, acid resistant, alkali resistant and corrosion resistant.

4. Full carbon steel welding to ensure the machine without leakage welding, sturdy and durable.

5. Imported bearing, pure copper wire motor, stronger power, long lifetime and stable feeding.

6. Reasonable design with small footprint, beautiful and durable.

7. Can be used for high-speed dewatering of various waste materials such as sinking and floating materials and plastic pellets.

8. Its dewatering rate can reach 97% and can be added drying equipment to make the materials 100% drying.



Specification
Model Rotor Size Motor Power(KW) Water Supply Capacity Machine Size Feeding Hopper Size Weight
Φ*L(mm) Main
Motor
Feeding
Motor
L/min. KGS/hr L*W*H mm L*W
(mm)
Height from
ground (mm)
KGS
VE-F380 Φ380*1545 7.5 1.5 20-40 600-1500 3020*1140*2350 860-860 1150 1200
VE-F420 Φ420*1545 11 1.5 20-50 800-2000 3020*1140*2350 860-860 1150 1400
VE-Y380 Φ380*1615 7.5 1.5 20-40 600-1500 2240*880*2440 660-660 1050 1200
VE-Y420 Φ420*1615 11 1.5 20-50 800-2000 2240*960*2440 660-660 1050 1400
Above specifications are subject to change without any notice.
