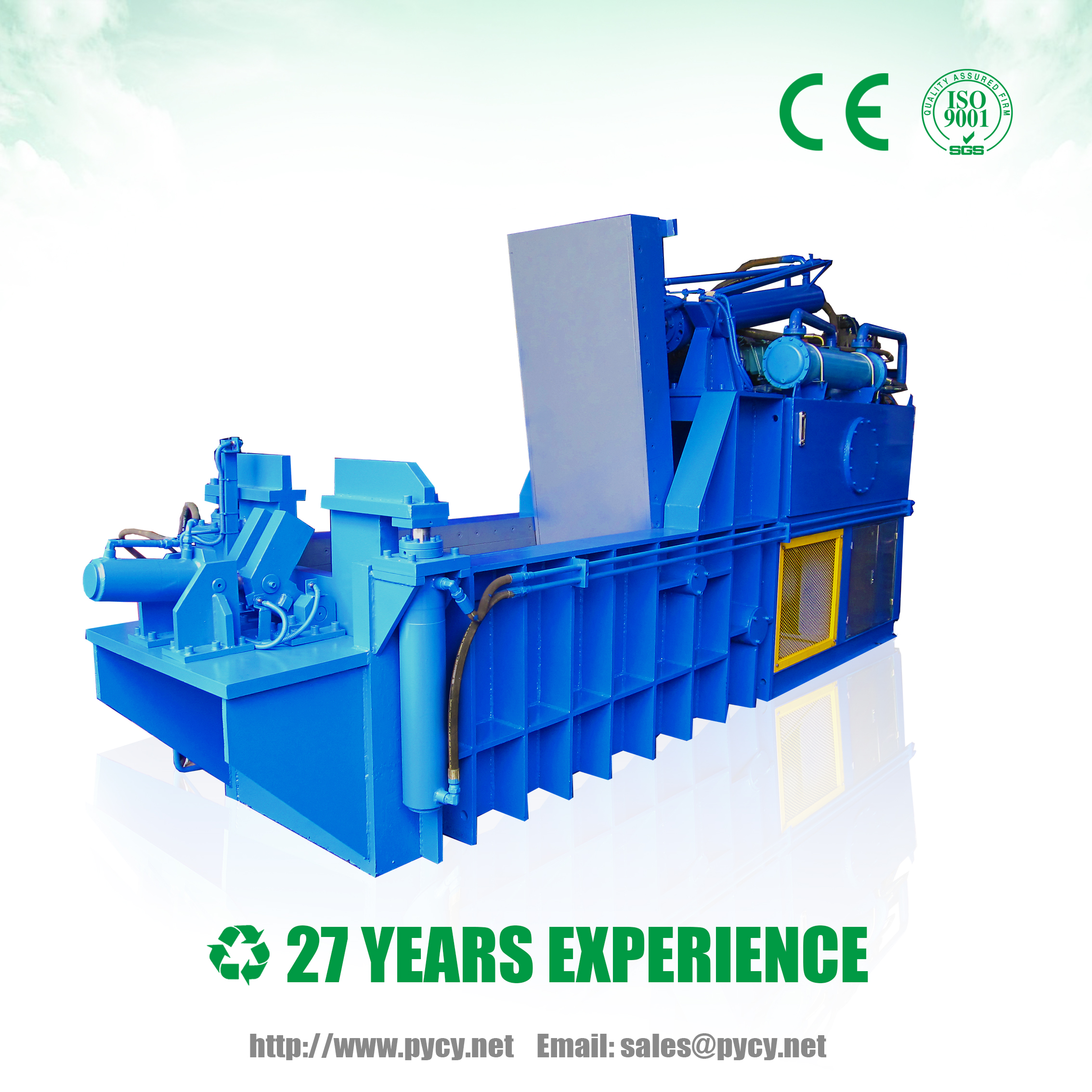

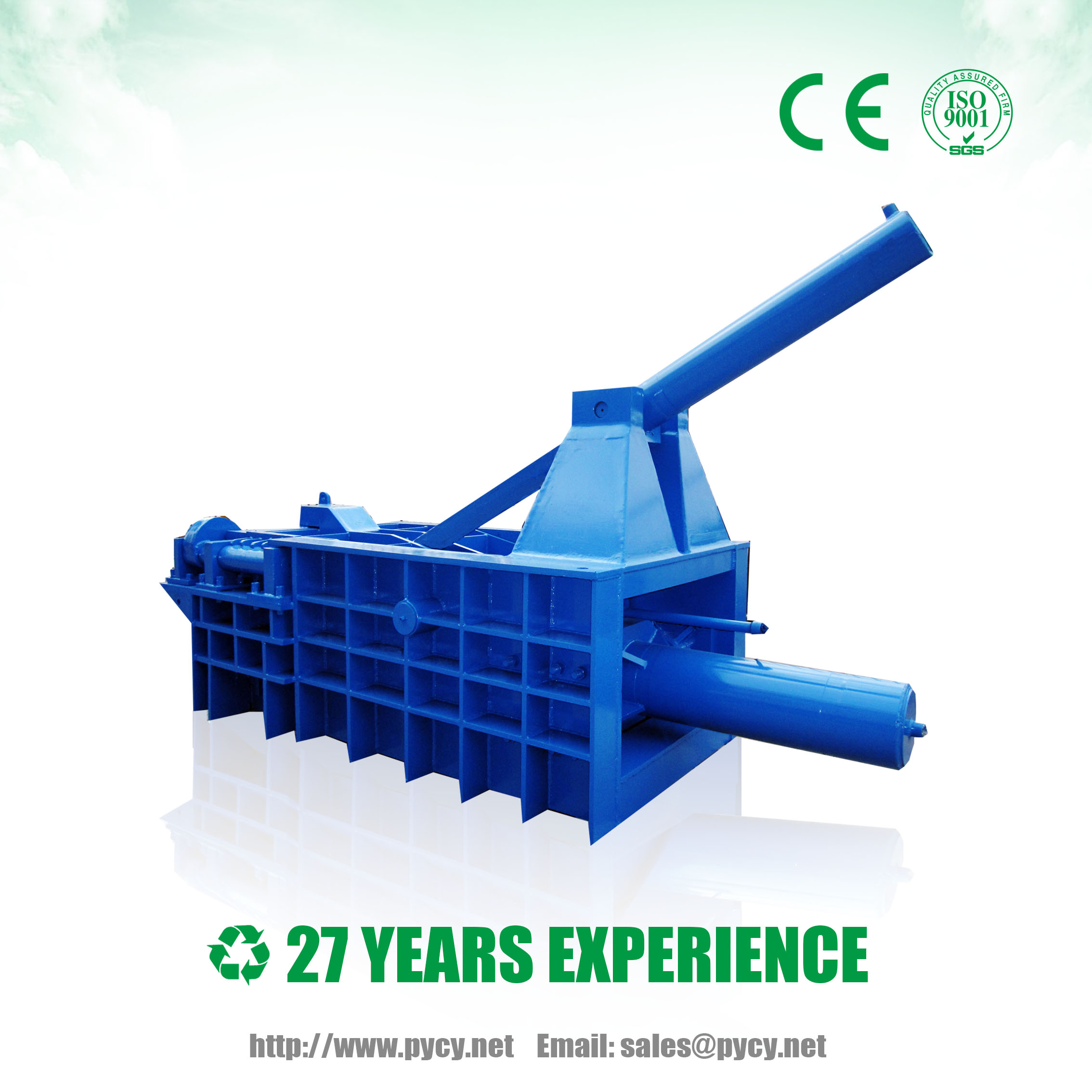

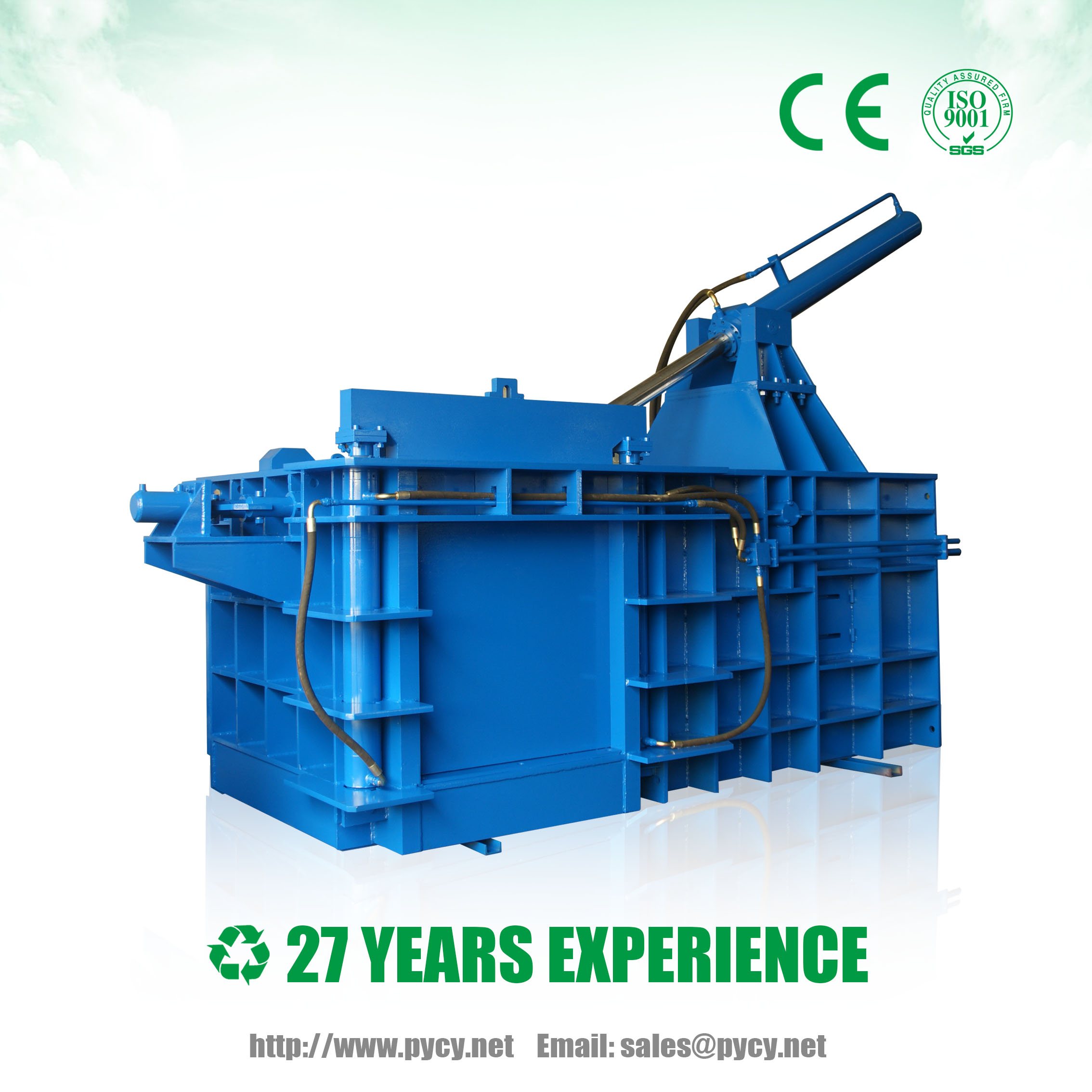

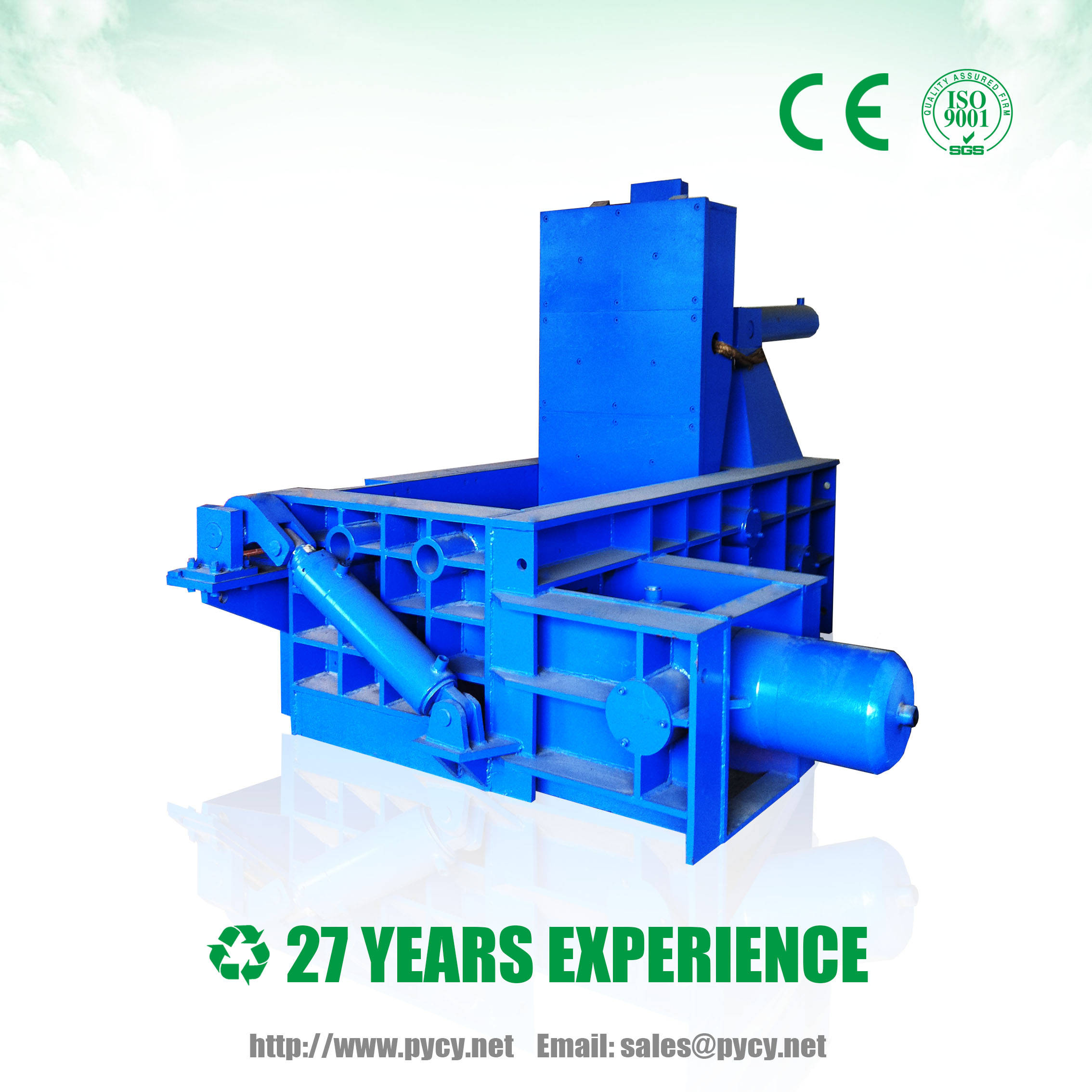

Metal Baler
Metal Baler
Metal baler is use to press all kinds of metal scrap (steel scrap ,aluminum scrap , copper scrap , stainless steel scrap , and scraped automobile car etc ) into rectangular , octagonal ,cylindrical shape bulk for furnace melting . Not only it could save transportation cost , but also it could short feeding time .

This model hydraulic metal baler is installed in steel plant , metal recycling plant , Ferrous and non-ferrous metal melting plant .

1. All of models choose hydraulic driving , it could choose manual operation or PLC operation .
2. Discharging mode could choose Turn-out type , Forward-out type , Push-out type , And discharging by man-hand .
3. It isn't necessary to install with foundation bolt . If power isn’t available , diesel engine could be closed .
4. Main cylinder extrusion force is from 150 tons to 300 tons .
5. Press box size and bale size could be designed and made according to the  customers’ requirements .
6. Hydraulic pump , valve and electric parts choose Chinese famous brand .

Specification:

Model    Bale Volume
L*W*H(mm)
Work Pressure
(KN)
Press Chamber Size
L*W*H(mm)
Single Cycle Time
(Sec.)
Motor Power
(KW)
Machine Weight
(KGS)
Operation
HB-150Z (300-500)*300*300 1500 1200*300*600 ≤ 90 22 Appr. 7000 Forward Push
HB-200Z (300-600)*400*400 2000 1500*400*700 ≤ 90 37 Appr. 8800 Forward Push
HB-150C (300-500)*300*300 1500 1200*800*600 ≤ 150 22 Appr. 7000 Side Push
HB-200C (300-600)*400*400 2000 1500*800*700 ≤ 150 37 Appr. 8800 Side Push
HB-300C (500-1000)*800*800 3000 2000*1500*1200 ≤ 160 44 Appr. 31000 Side Push
HB-150F (300-500)*300*300 1500 1200*800*600 ≤ 150 22 Appr. 7000 Turn Over
HB-200F (300-600)*400*400 2000 1500*800*700 ≤ 150 37 Appr. 8800 Turn Over
HB-300F (500-1000)*800*800 3000 2000*1500*1200 ≤ 160 44 Appr. 31000 Turn Over

Specification is subject to change without any notice.
