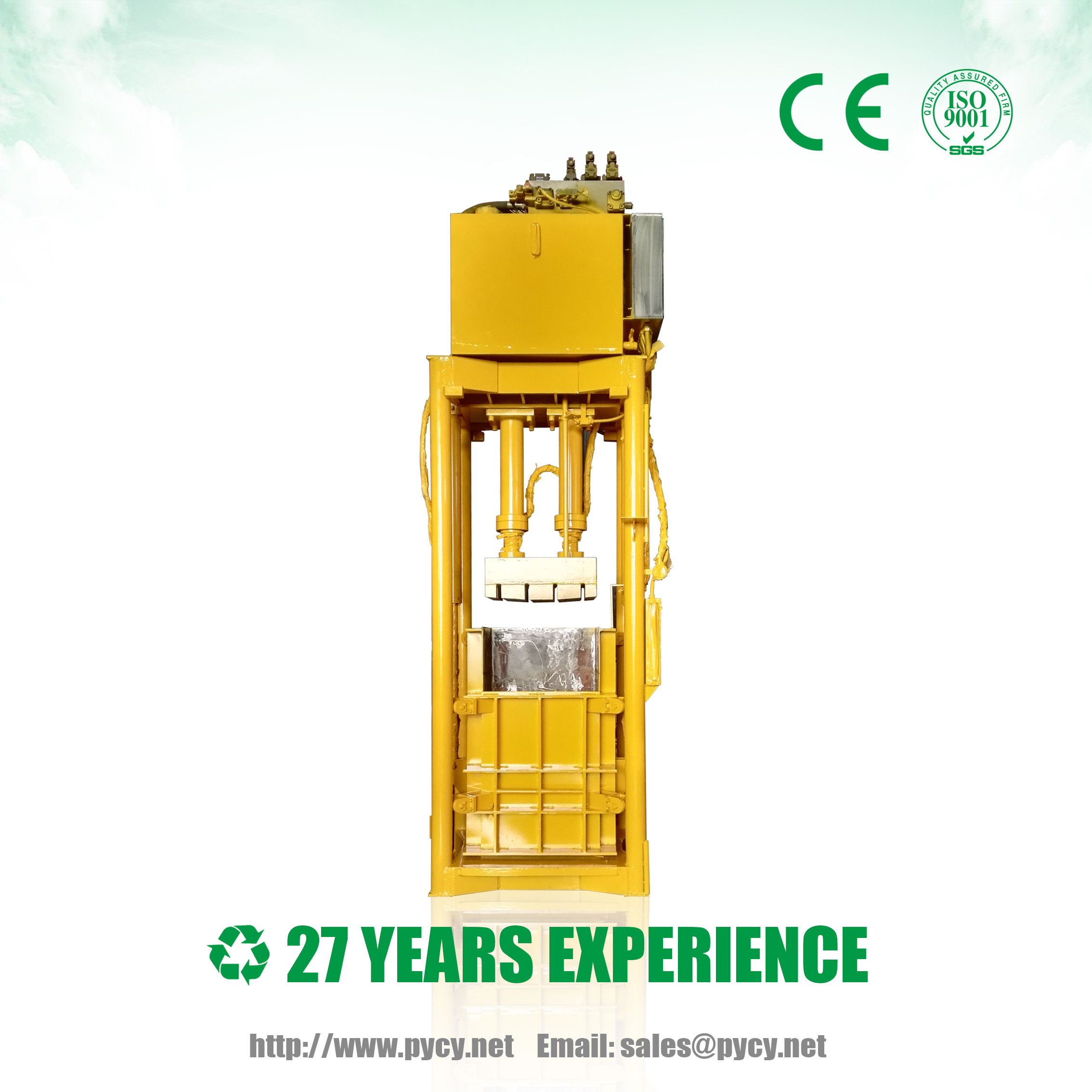

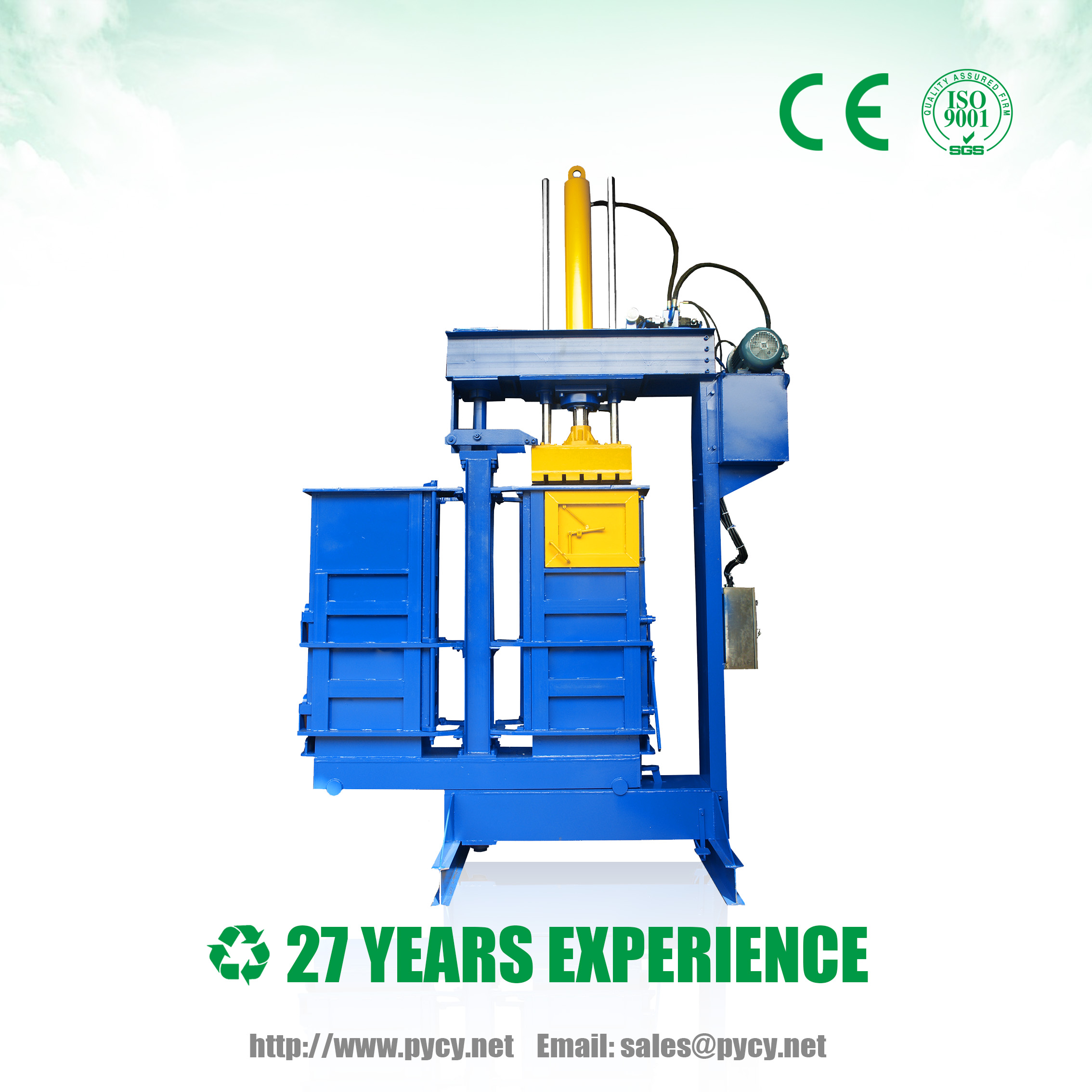

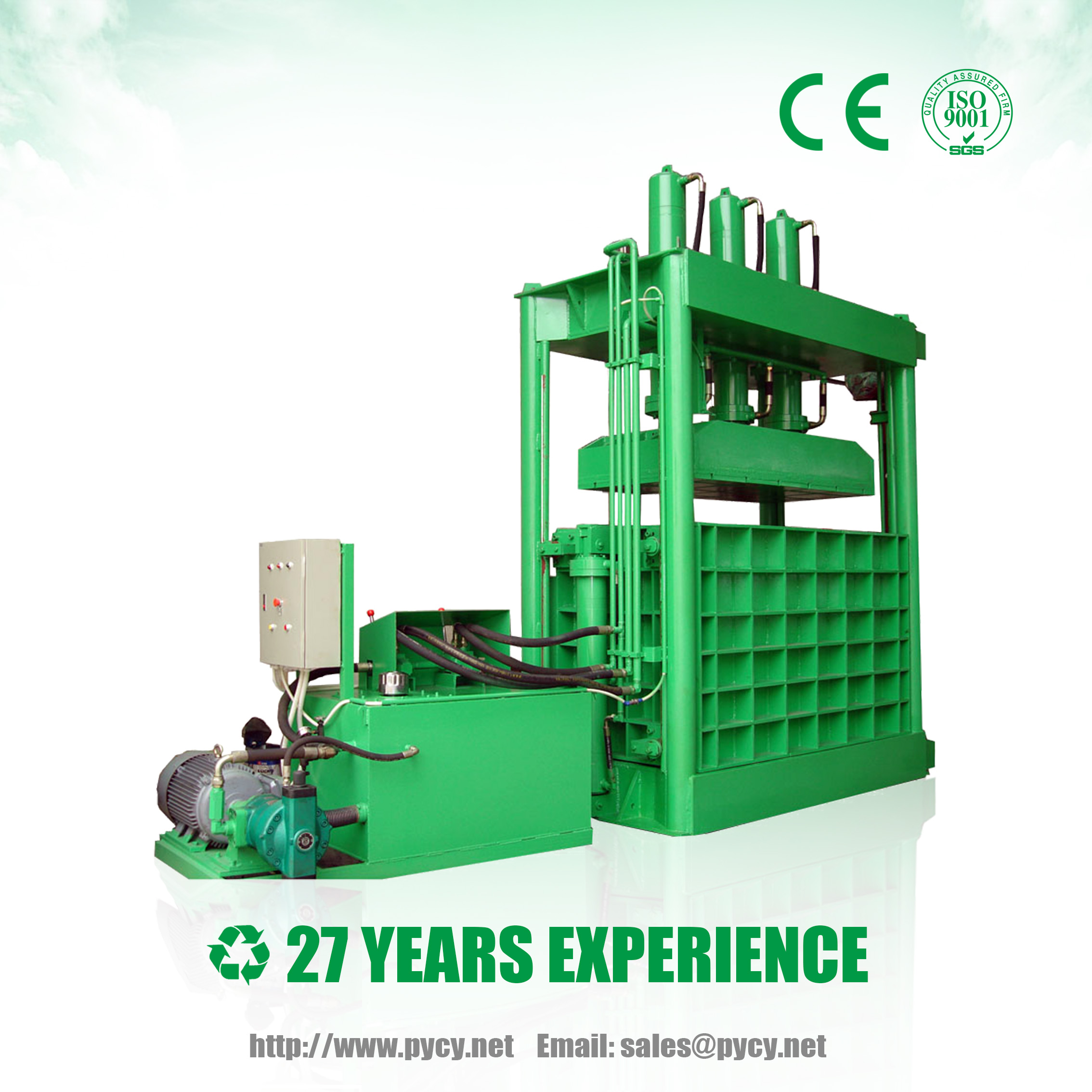

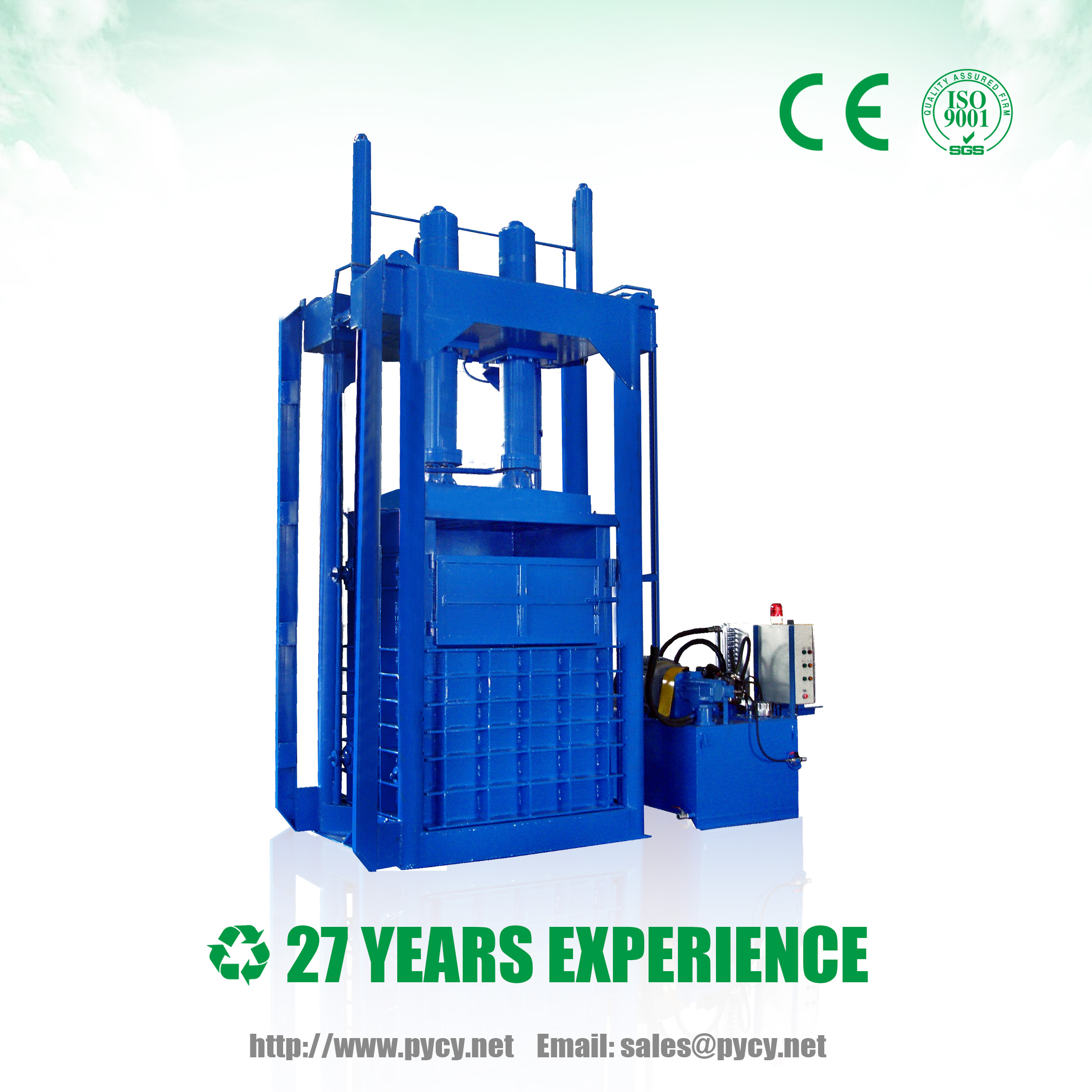

Texile Baler
Texile Baler
Tub-Type Baler is applicable for baling the incompact materials such a waste paper , waste plastic , waste metal , waste cotton and so on. We can produce different models including TB-60, TB-100, TB-150, TB-200 and TB-300 according to our customers' demand.
1. Perfect for pressing waste plastic, waste material textile, used cloth, fiber and soft material
2. Close the feeding material gate, the baler auto working.
3. With safety button on feeding material gate.
4. Big feeding room
5. Stable pressing with four pressing guide
6. Safety locking door and two safety protection system
7. Open the door, the electric will be cut off.
8. Automatic steel chains ejecting bale system.
9. Bale size can be adjusted-DIY
10. Robust building
Specification
Specification is subject to change without any notice.
2. Close the feeding material gate, the baler auto working.
3. With safety button on feeding material gate.
4. Big feeding room
5. Stable pressing with four pressing guide
6. Safety locking door and two safety protection system
7. Open the door, the electric will be cut off.
8. Automatic steel chains ejecting bale system.
9. Bale size can be adjusted-DIY
10. Robust building
Specification
| Model | Bale Size L*W*H(mm) |
Working Pressure （KN） |
Motor Power （KW） |
Overall Dimension L*W*H(mm) |
Machine Weight （KGS） |
| TB-60T | 720*520*500 | 600 | 11 | 1450*1030*4100 | 2000 |
| TB-100T | 1100*1250*1300 | 1000 | 15 | 2000*1460*3800 | 7600 |
| TB-150T | 1100*1250*1300 | 1500 | 18.5 | 2000*1460*3800 | 9500 |
| TB-200T | 1000*2000*1300 | 2000 | 22 | 2760*1360*4000 | 12300 |
| TB-300T | 1220*2000*1300 | 3000 | 2*22 | 2800*1500*4500 | 14500 |
