Vertical Baler
Vertical Baler
Minimum Floor Space, Low Cost Waste Handling and Simplified Controls
Product Description
Vertical Balers are Especially Suitable for Business that Produce Small to Medium Volumes of Waste or Where
Space is limited eg Retail Outlets, Hospitality Industry and Garage Forecourts.
QIANGYE’s Standard Vertical Balers Range is Designed for Clients with Small Amounts of Waste. Very Suitable
for a Wide Variety of Applications Including Baling Plastic, Cardboard and Aluminum Cans.
The VB Range of Vertical Balers is the Ultimate in User Friendly Balers with the Benefits of Minimum Floor Space,
Low Noise,a Fast Cycle Time and Front Loading Baling Cord.They are Equipped with a Mechanical Ejection System,
Low Cost Waste Handling, Low Height for Ease of Transport and Installation. Bale Weight is from 70kg up to 1500kg.
Space is limited eg Retail Outlets, Hospitality Industry and Garage Forecourts.
QIANGYE’s Standard Vertical Balers Range is Designed for Clients with Small Amounts of Waste. Very Suitable
for a Wide Variety of Applications Including Baling Plastic, Cardboard and Aluminum Cans.
The VB Range of Vertical Balers is the Ultimate in User Friendly Balers with the Benefits of Minimum Floor Space,
Low Noise,a Fast Cycle Time and Front Loading Baling Cord.They are Equipped with a Mechanical Ejection System,
Low Cost Waste Handling, Low Height for Ease of Transport and Installation. Bale Weight is from 70kg up to 1500kg.
Standard Features Include
*Low Cost Waste Handling with Low Noise. Simplified Manual or Electric controls. Front Loading Baling Cord.
*Compact Design. Faster Cycle Time. Minimum Floor Space. Mechanical Bale Ejection. Automatic Return Stroke.
*Sandblasted, Primed, and Painted Blue for Long Lasting Durability. Feed Opening Allows to Load Bulkier Materials.

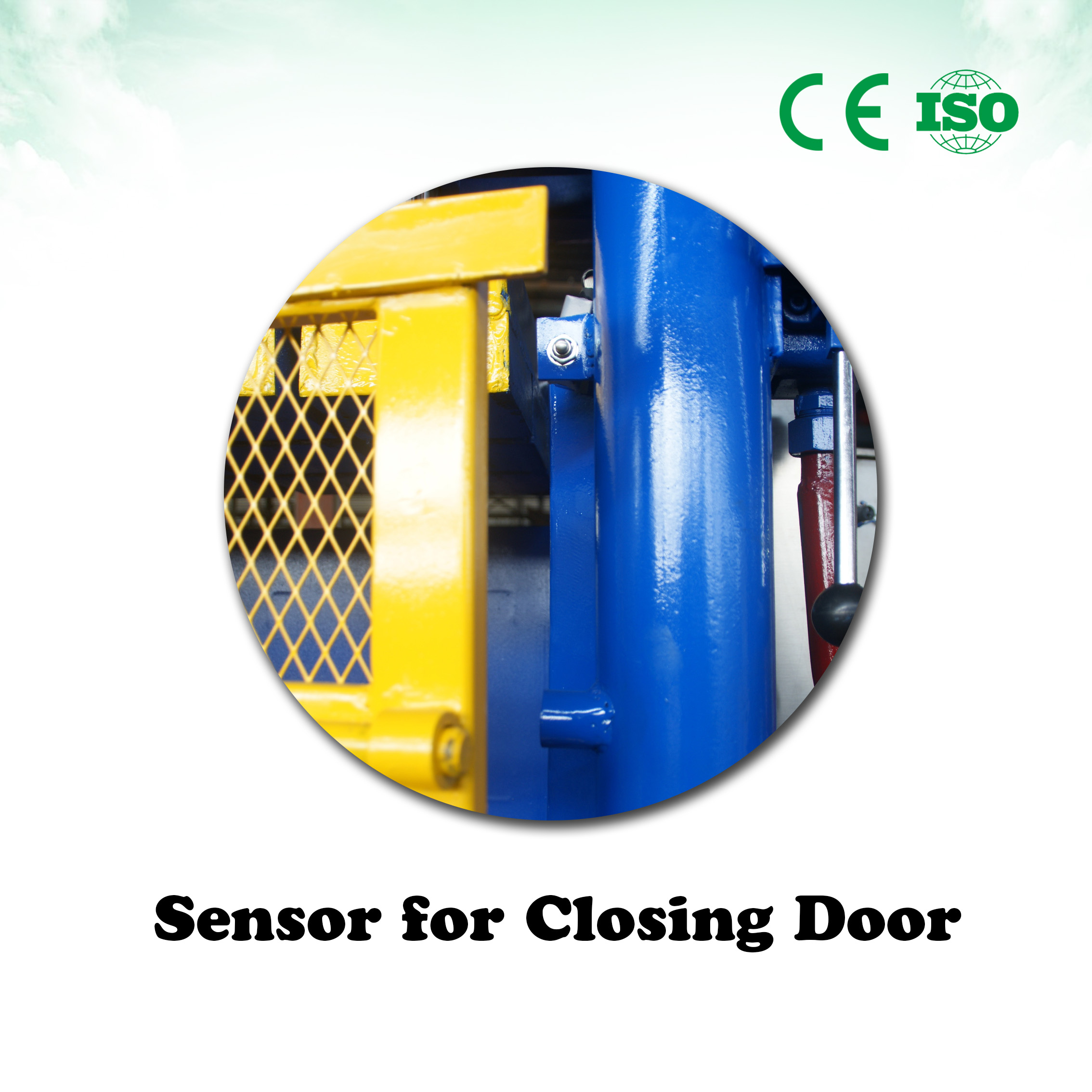

*Front Safety Door with a Sensor Probe to Ensure Safety Operation. Low Height for Easy to Transport, install and use.
*Bale Length Adjustable to Clients Needs and Optimise Transport Loads. Hydraulic Reservoir with Regenerative Circuit.
| Model | Capacity | Bale Weight | Motor Power | Bale Size(L*W*H) |

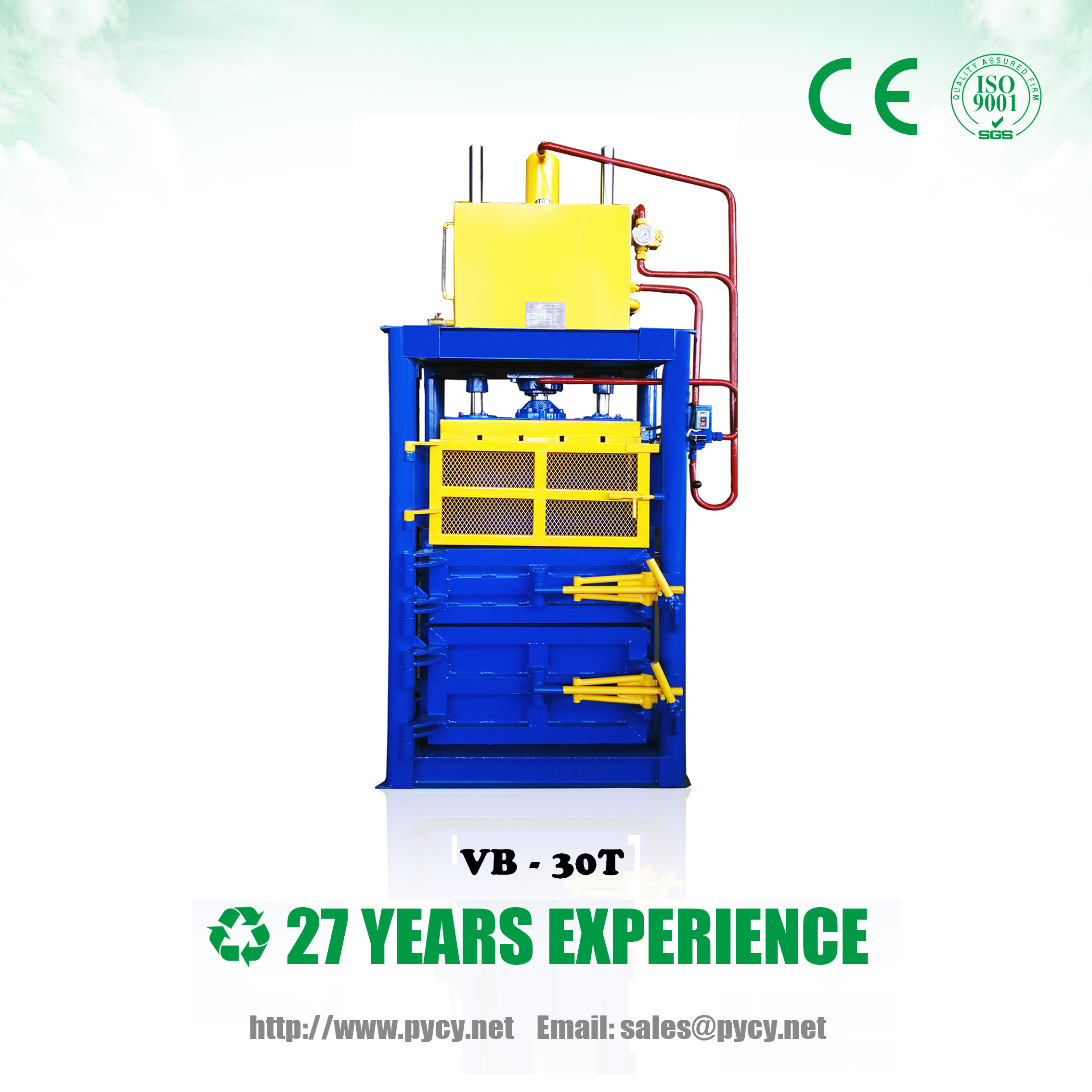

| VB-30T | 210 to 800 KGS/hr | 70 to 190 KGS | 7.5KW | 900*600 *(400-1000) |
| VB-40T | 240 to 900 KGS/hr | 80 to 220 KGS | 7.5KW | 900*600 *(400-1000) |

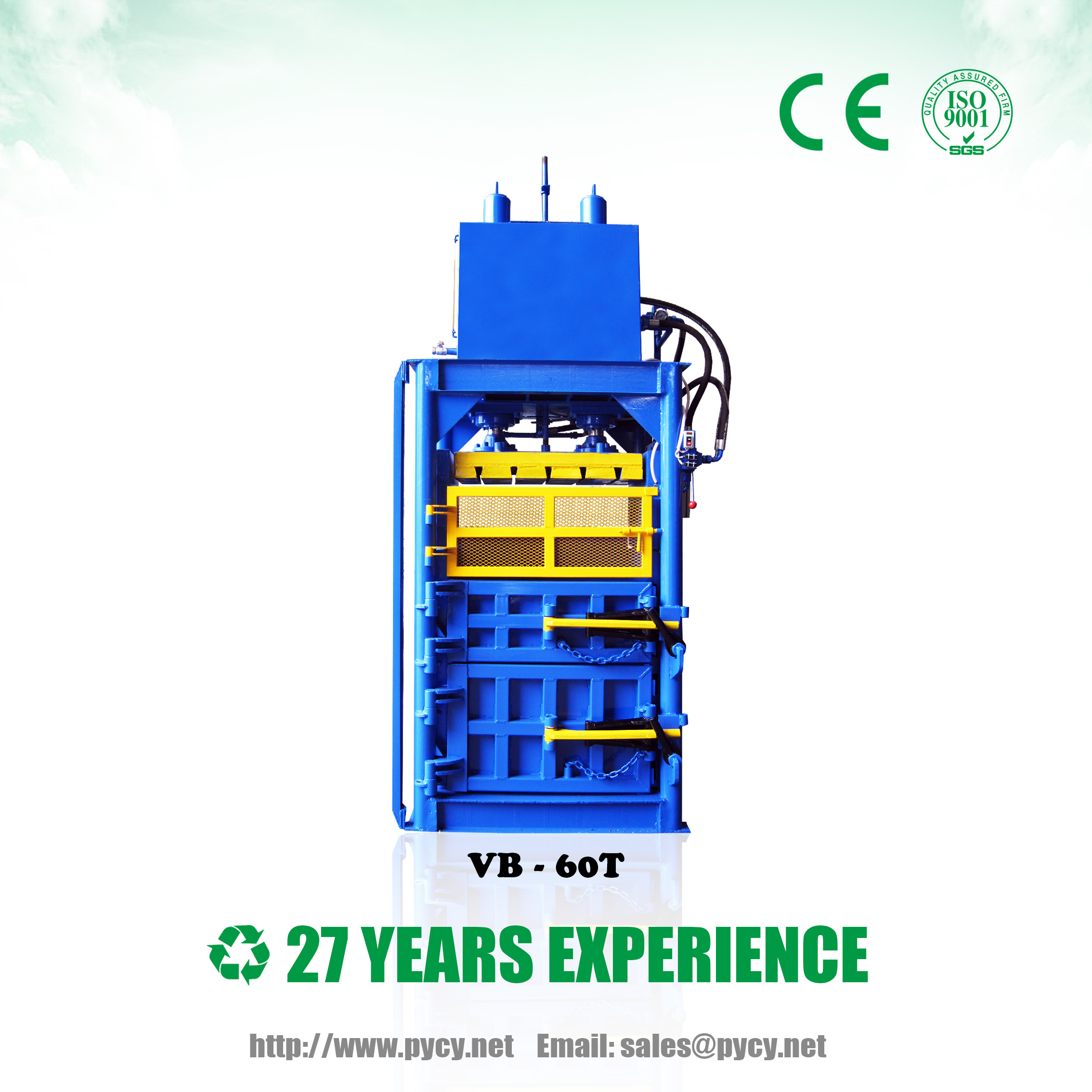

| VB-60T | 350 to 1250 KGS/hr | 120 to 310 KGS | 11KW | 1000*650 *(400-1000) |

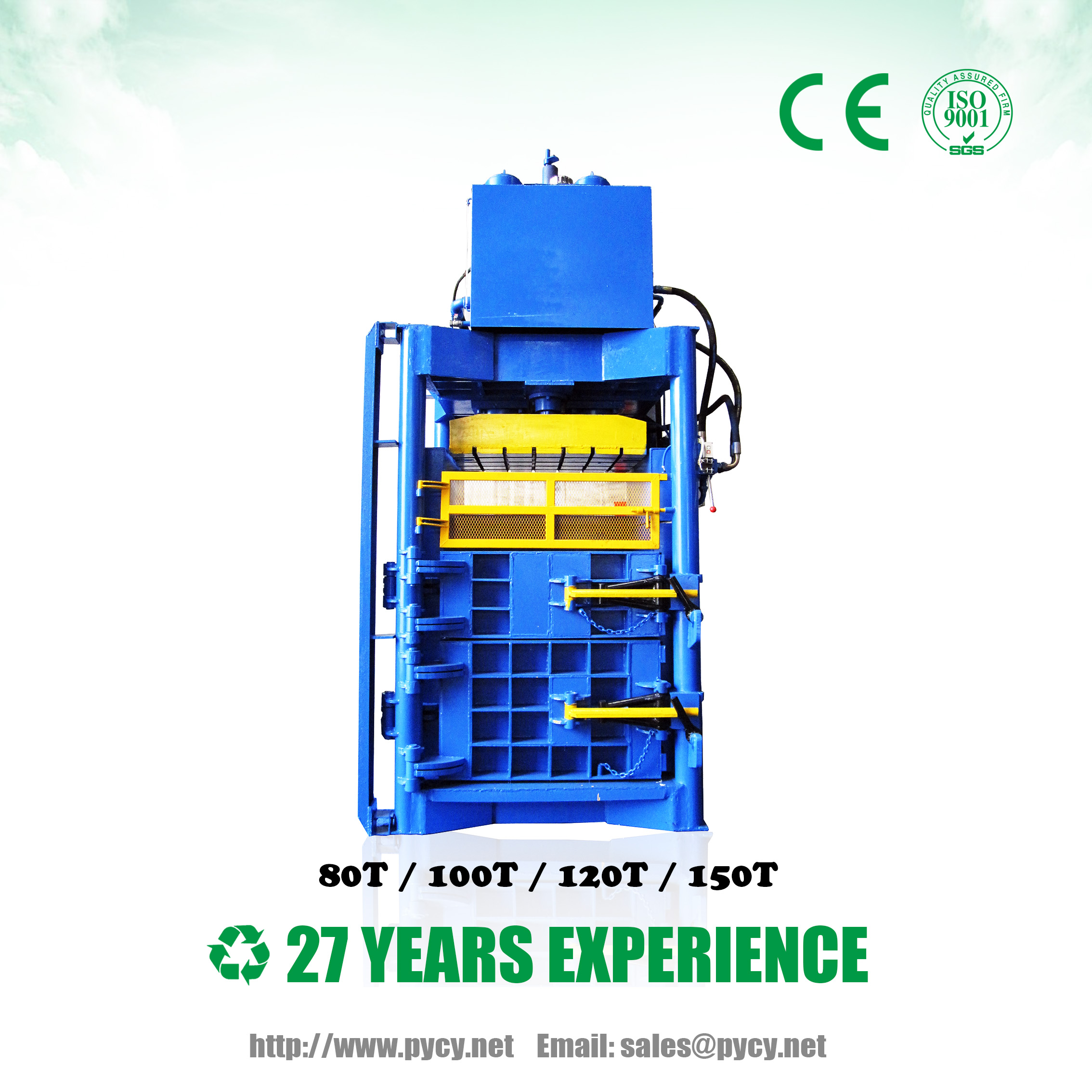

| VB-80T | 600 to 2000 KGS/hr | 200 to 500 KGS | 11KW | 1000*650 *(400-1000) |
| VB-100T | 600 to 2100 KGS/hr 850 to 2850KGS/hr 1320 to 4500KGS/hr |
200 to 520 KGS 280 to 710 KGS 440 to 1100 KGS |
15KW 15KW 18.5KW |
1000*650 *(400-1000) 1100*800 *(400-1000) 1250*1100*(400-1000) |
| VB-120T | 1000 to 3400KGS/hr 1550 to 5250KGS/hr |
330 to 840 KGS 520 to 1310 KGS |
18.5KW 22KW |
1100*800 *(400-1000) 1250*1100 (400-1000) |
| VB-150T | 1000 to 3400 KGS/hr 1550 to 5250 KGS/hr |
330 to 840 KGS 520 to 1310 KGS |
18.5KW 22KW |
1100*800 *(400-1000) 1250*1100 *(400-1000) |
Note:
*Products Specification Subject to Change without Notice.
*Products Specification Subject to Change without Notice.
