Hay Baler

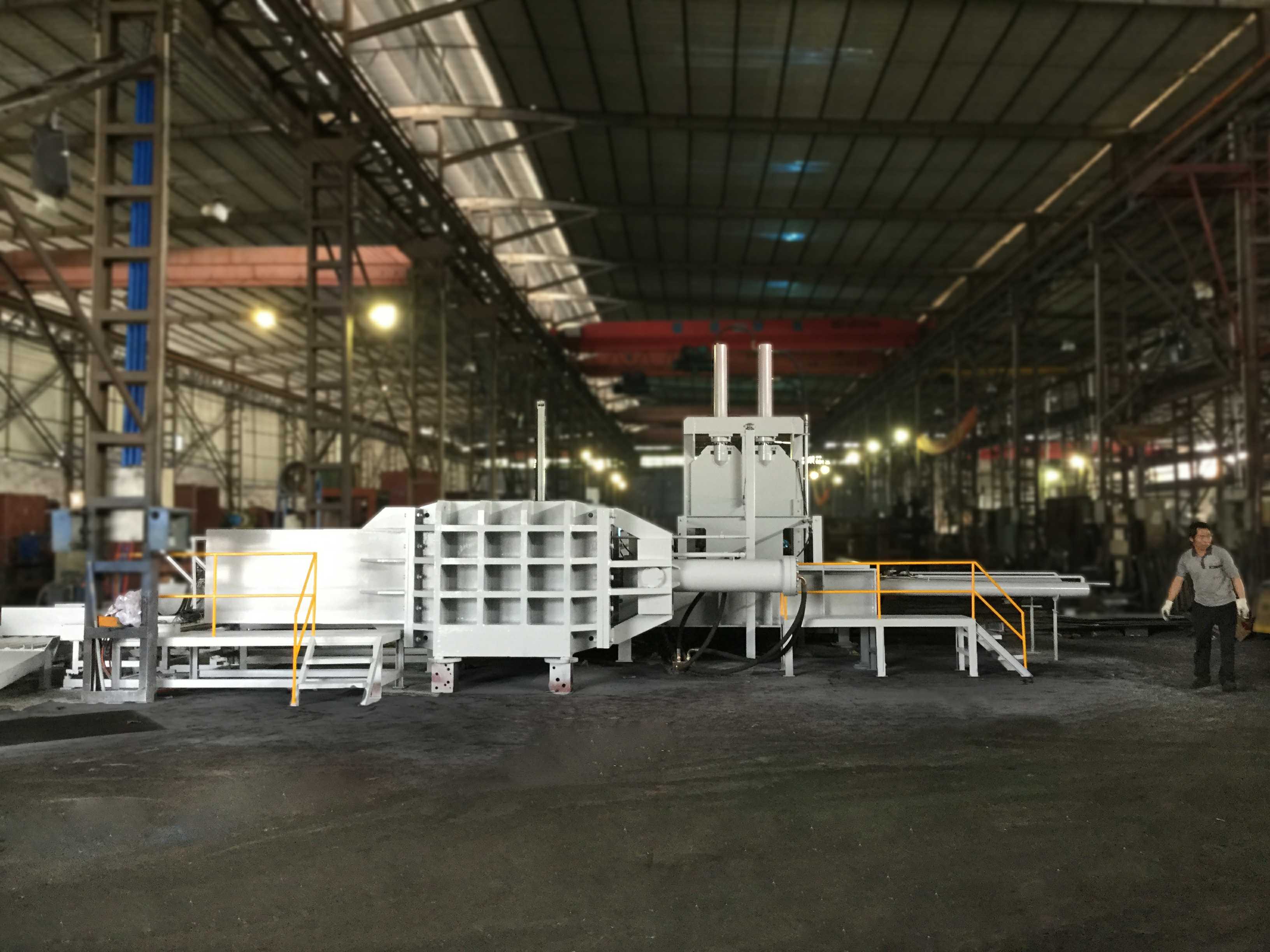

500T Hay Baler

Specialized in farming and animal husbandry processing industry. all kinds of loose objects such asfeed grass etc. can be compre-ssed into rectangle and square etc various packaging size to reduce transportation and storage cost from feeding , transporting , packing, shearing, weighing, bagging. it is very convenient with auto operation and integrated control function.

1. Compress and bale materials full automatically.

2. Suitable for large amount material places.

3. Bale size can be customized.

4. Adopt unique automatic strapping device, tie bale with high speed.

5. Simple frame, stable operation, and convenient maintenance.

5. With PLC rewritten procedure and touch screen.

6. Can conveniently realize your more desired models of operation condition.

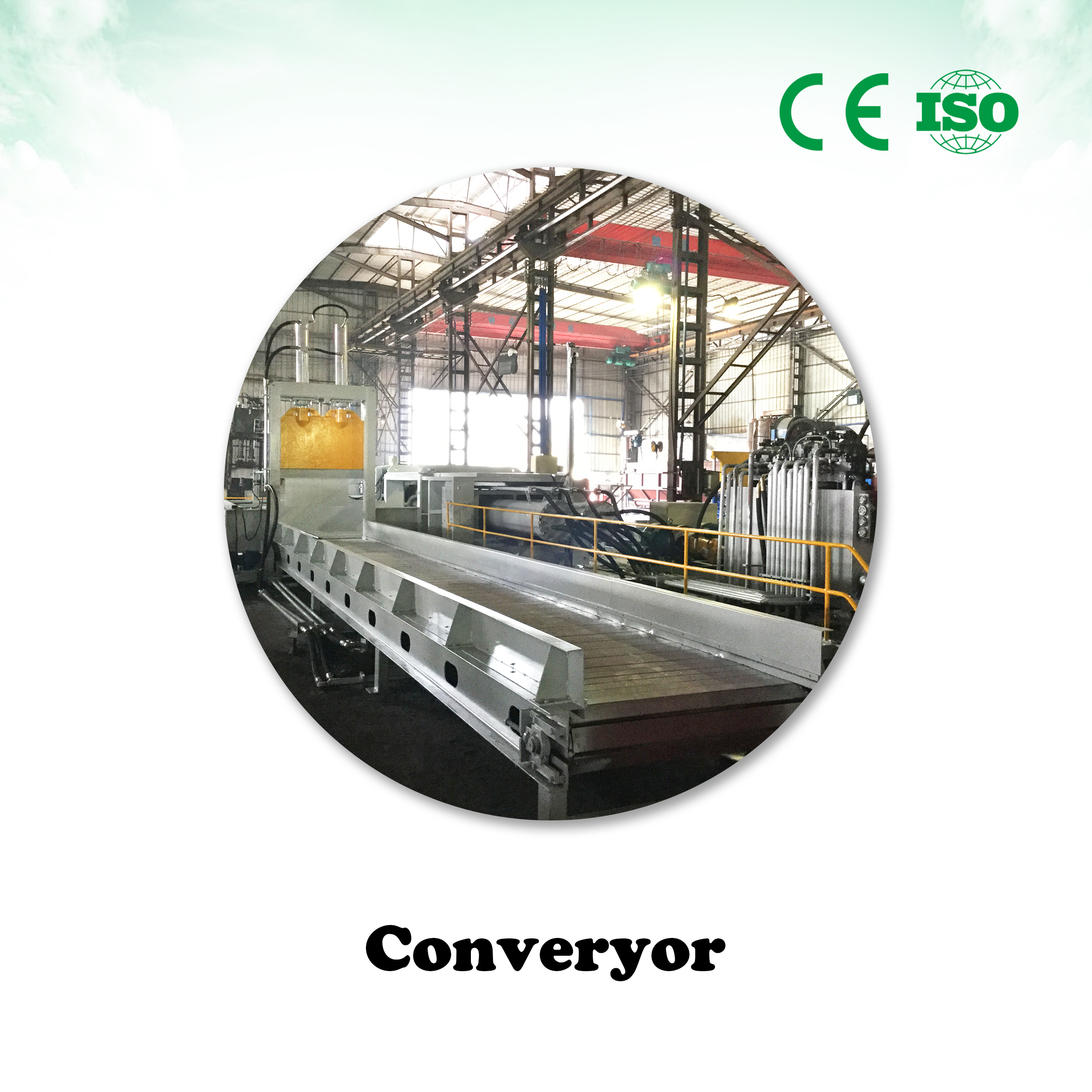

7. There are transmission line and air-blower as options to feed material.

8. Suitable to waste cardboard recycling companies, plastic, fabric large garbage disposal sites and so on.


Specification:

Model APB-500T
Motor      Power(KW) 282.5
     Pump Motor(KW) 45*6
     Push Bale Out Pump
     Motor(KW)
5.5
     Conveyor Motor(KW) 5.5
     Watering Cooling
     Motor(KW)
1.5
Working
Pressure
     Main Pressure(KN) 5000
     Side Pressure (KN) 1500
        Bale Capacity Appr.450-600 KGS/Bale,160T hay per day(8 hours/day)
        Bale Size(mm) 1067(W)*914(H)*1220(L)
        Feeding Hopper Size (mm) 2250(L)*1450(W)
       Chamber Size(mm) 926(W)*914(H)*1220(L)
       Overall Size(mm) 15886(W)*12667(H)*4004(L)
       Machine Weight (KGS) 65000
       Function Auto feeding grass, cutting baling, manual bundle woven bag,
auto bale out
Specification is subject to change without any notice.
