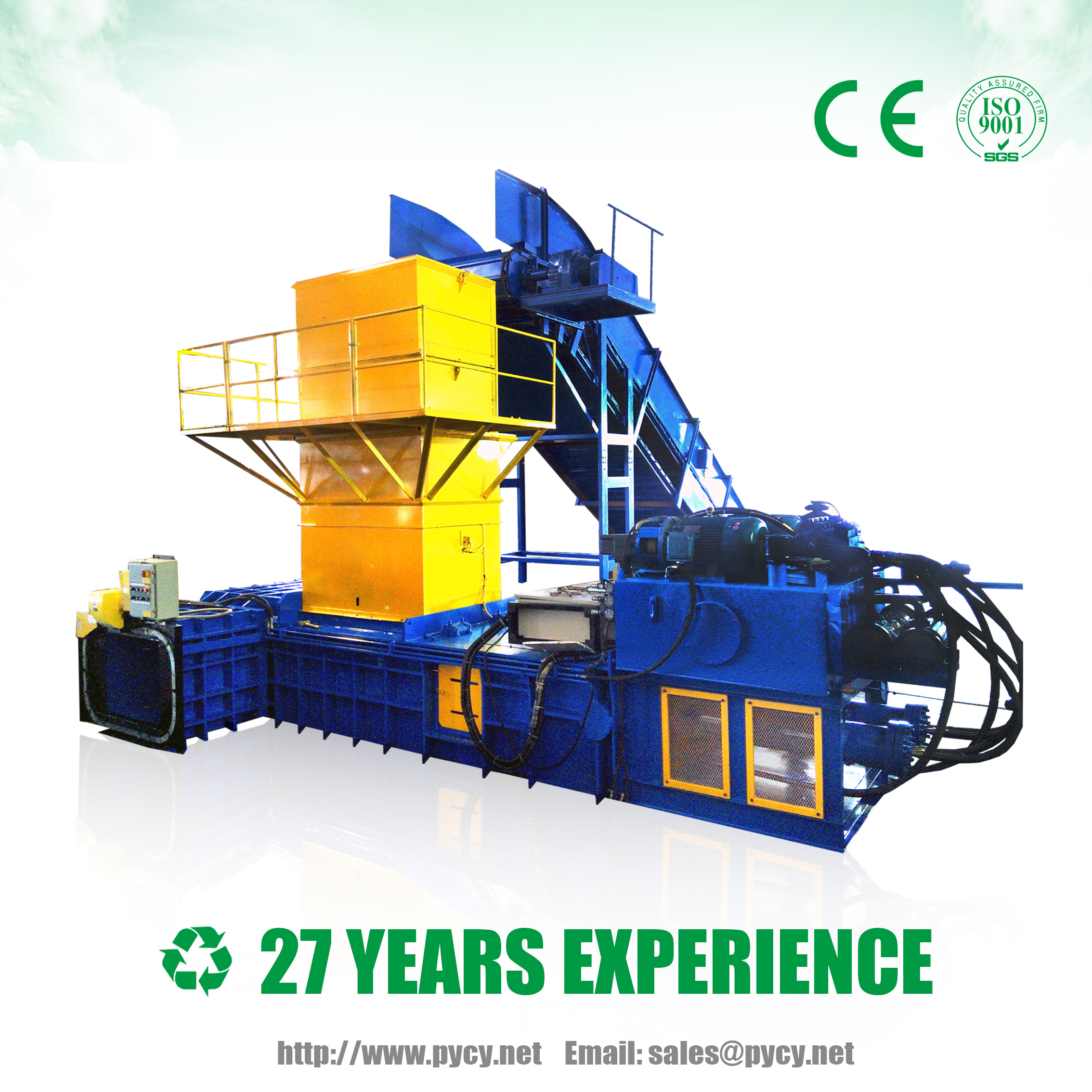

Auto Two Ram Baler For Plastic
Auto Two Ram Baler For Plastic

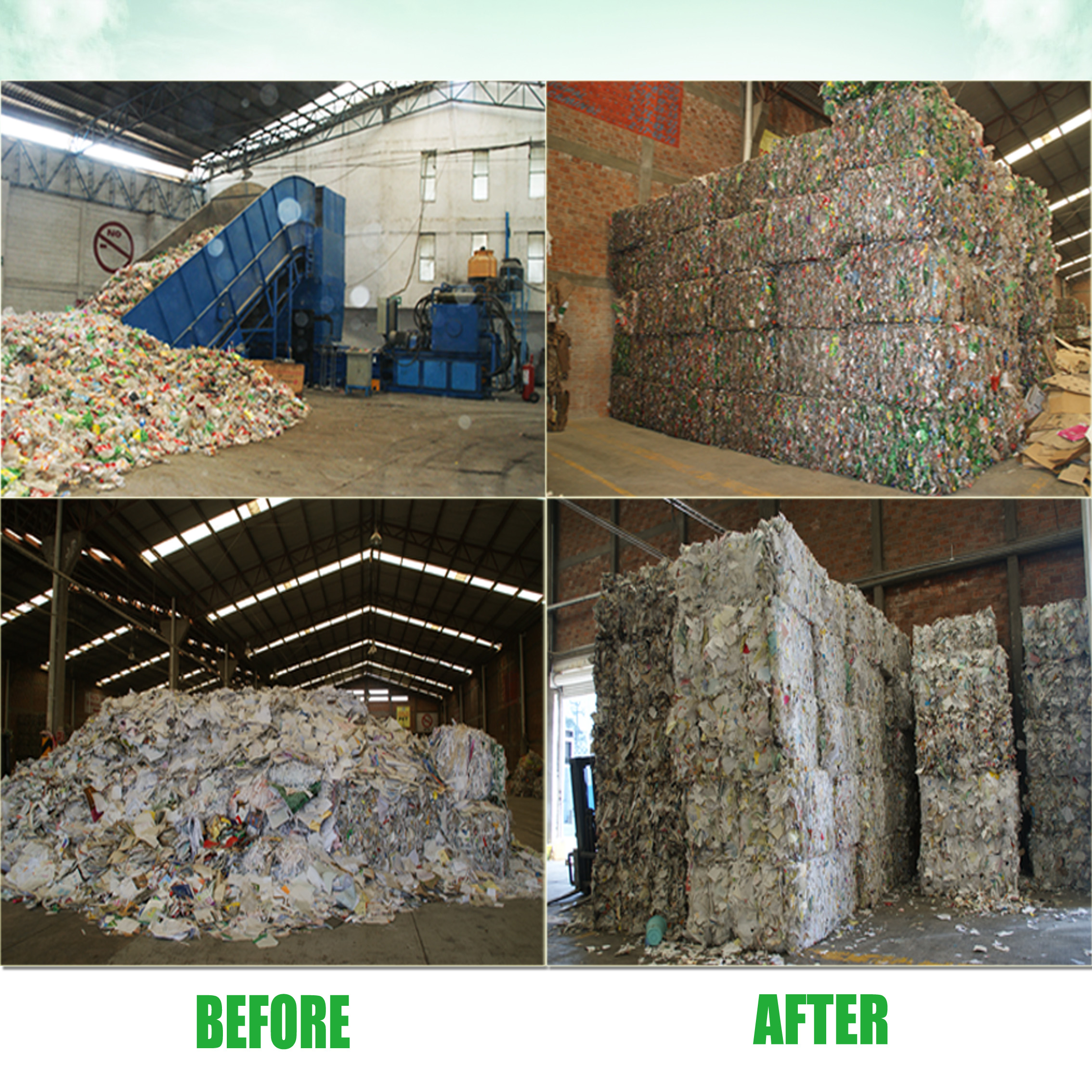

Specialized in recycling and compressing the materials like PET bottles, plastic film, cardboards/ cartons, carton
trims, waste paper, magazines, fabric etc, convenient for storage, saving labor cost.
Features:

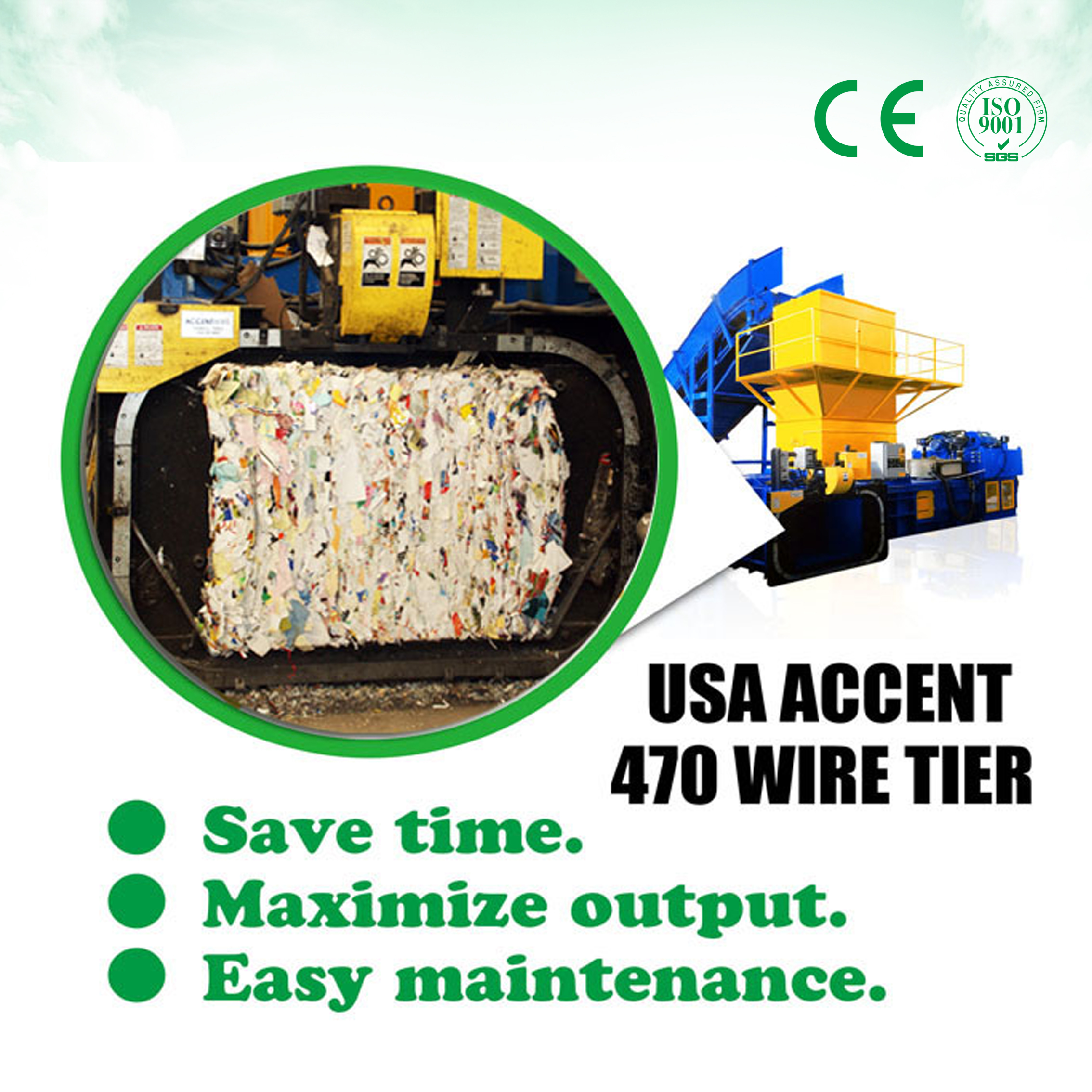

1. Using USA Accent wire system to ensure faster baling and lower trouble.

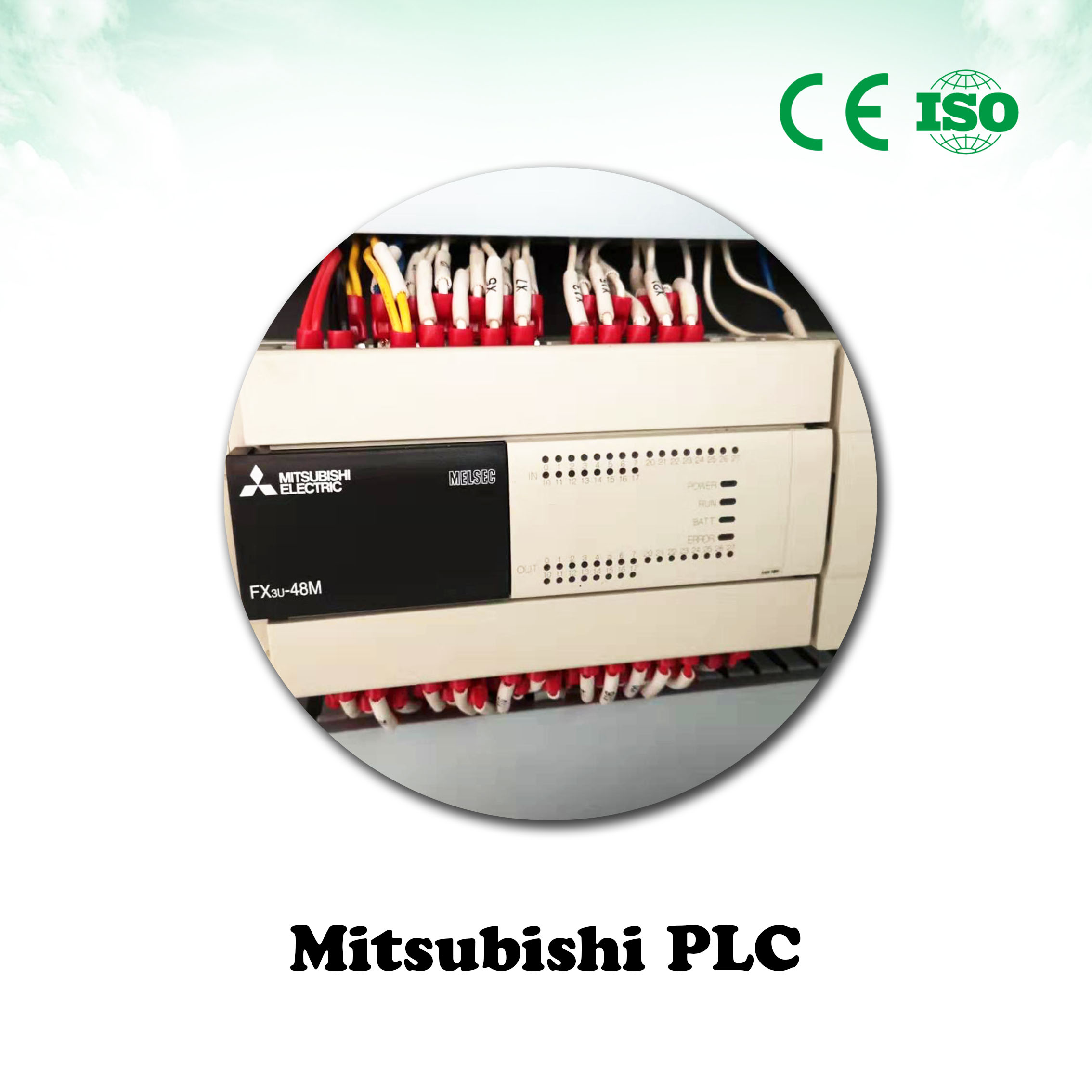

2. Using Japan Mitsubishi PLC control system and LCD display make it easy to operation and safety.
3. Its hydraulic loop system is made of imported hydraulic accessories to ensure the machine work more steady.
4. The distributed scissors with special design can improve the cutting efficiency and extend machine lifetime.
5. With two rams design, compact machine structure occupying small space.
6. Baling length and Conveyor size can be option.

Specification:
Model APB-200T APB-250T
Motor 45KW*2 37KW X 3
Baler Middle Cylinder
(mm)
--  Cylinder: Φ325(OD)*  Φ250(ID)*3395(L)
 Piston Rod: Φ180*3533
 Stroke:3147
Both Sides Cylinder
(mm)
 Cylinder:Φ273(OD)*Φ220(ID)*3055(L)
 Piston Rod: Φ160*3150
 Stroke: 2807
 Cylinder: Φ273(OD)*  Φ220(ID)*3395(L)
 Piston Rod: Φ160*3533
 Stroke: 3147
Side Cylinder
(mm)
 Cylinder:Φ351(OD)*Φ280(ID)*1656(L)
 Piston Rod: Φ200*2064
 Stroke: 1408
 Cylinder: Φ402(OD)*  Φ320(ID)*1900(L)
 Piston Rod: Φ240*3200
 Stroke:1612
Bale Size(mm) 980(W)*800(H)*1200(Adjustable)
Feeding Hopper(mm) 1700(L)*1175(W) 2250(L)*1450(W)
Operation Auto/Manual
Oil Tank Capacity(L) 1780 3545
Conveyor Motor(KW) 11 11
Gear Box 1:59(Cyclonical pin)
Width(mm) 1510 1800
Tie Wire System USA Brand Accent Wire 470
Cooling System Water Cooling With 15 Tons Water Tower
Bale Weight Plastic 450-500KGS/Bale 600KGS/Bale
Capacity Plastic Appr.4 to 6 Tons/hr Appr.6 to 8 Tons/hr
Gross Weight (Tons) Appr. 28 Tons(Machine);
9 Tons(Conveyor)
Appr. 32 Tons(Machine);
10 Tons(Conveyor)
Power Supply Voltage 380V/50HZ; 440V/60Hz; 220V/60Hz; 3 Phrase With 4 Wires; ( Option)
Specification is subject to change without any notice.
