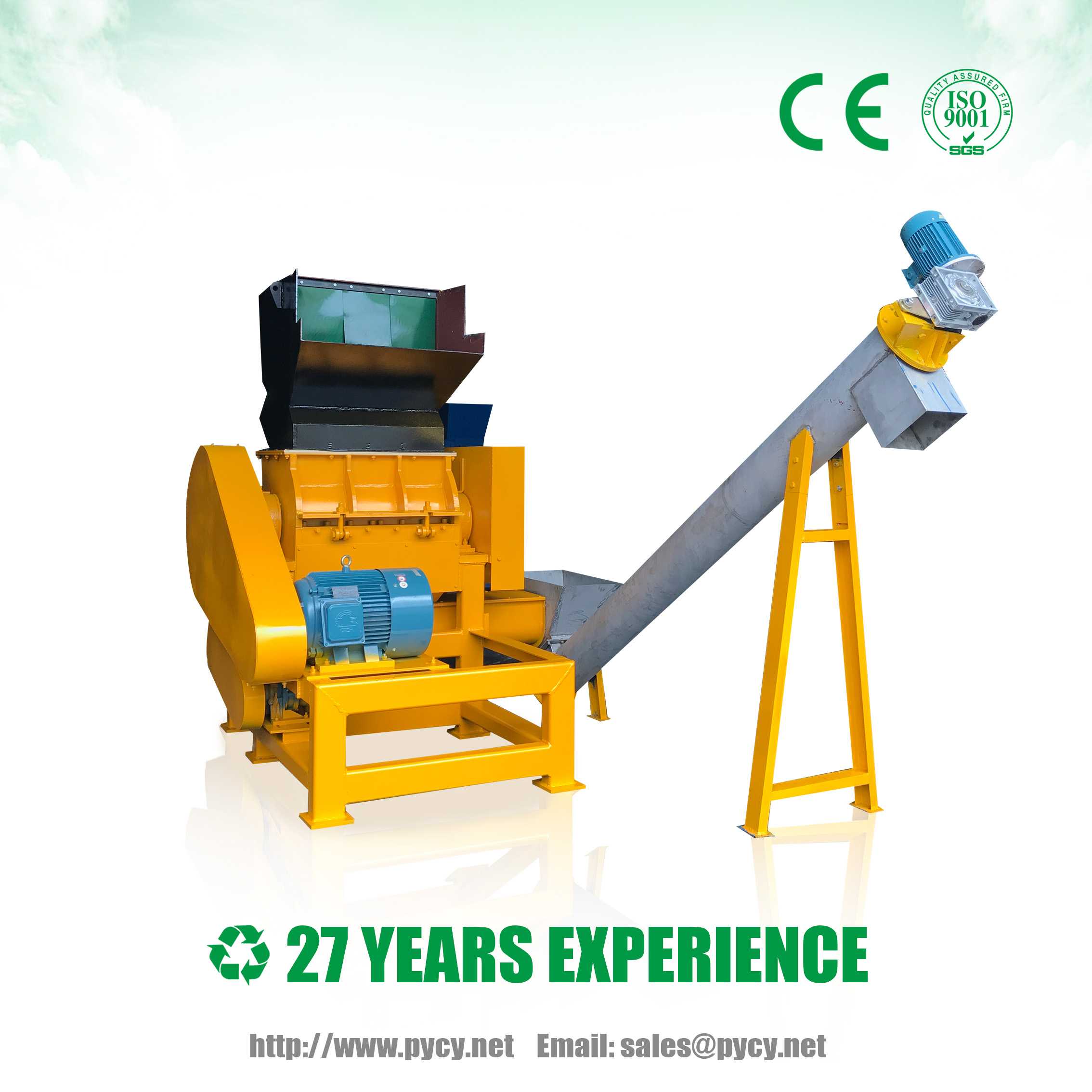

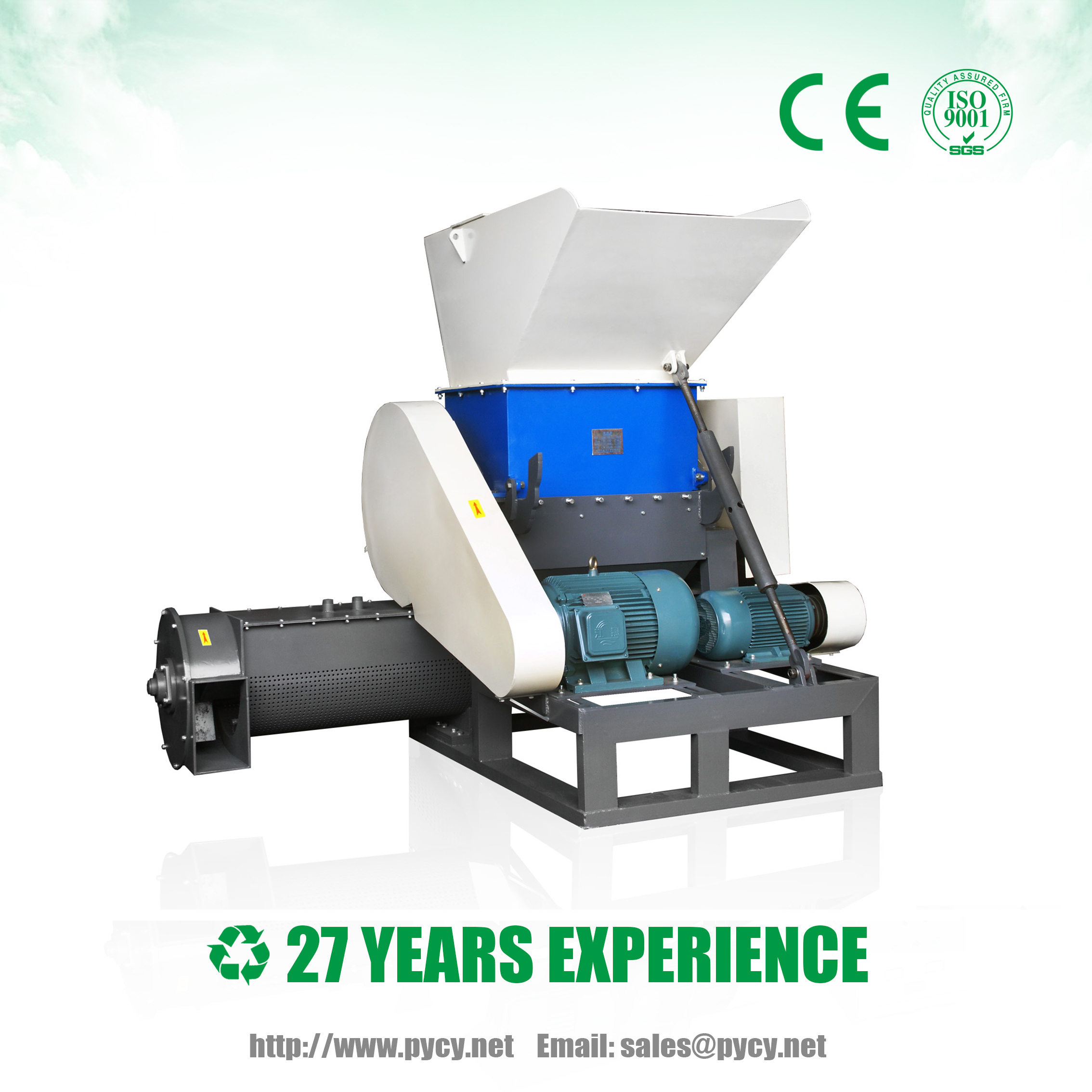

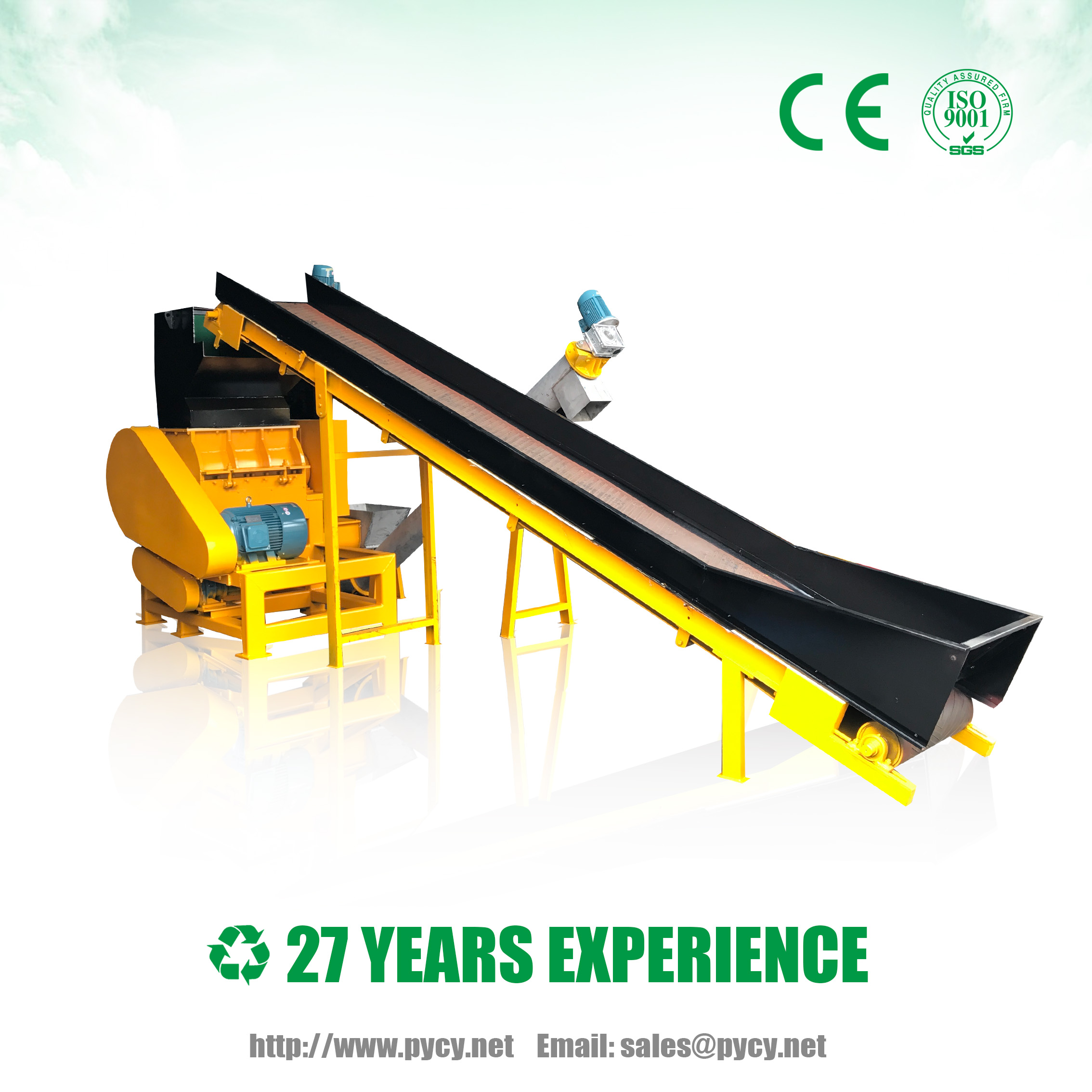

Crusher Machine
Crusher



Applications:

Specilized in crushing all kinds of plastic objects such as soft, hard, thick, thin, long and short (like packing belt, lump material, plastic cement,plastic molding leftoverflake materials, rubber, dialysate tube, plastic steel)etc.



Cutter type and its applications:

Claw type cutter

Except soft materials,the machine can be specialized in all kinds of hard plastics such as ABS, PMMA, POM, PU nylon, PU thick material, hard plastic molding material, hard waste materials, ox horn, fiber material, wood, ceramic, plastic drumwaste household appliance, plastic shell, hard shoe last material and waste sole etc.



Flake type cutter

Specialized in crushing all kind of PP, PE, PET, PVC flakes, PU soft material, mineral water bottle, film, woven bag, leather shoe sole, rubber tube, plastic shell, computer main board, plastic leftover material and so on.



Butterfly type cutter (Flat cutter)

Except hard plastic and soft gummed paper, the machine can be specialized in all kinds of plasticsuch as plastic bottles, paper scraps, PE films, blow molding plastics and so on.



V type knife

Wide Useful V type knife crusher can crush all kind of soft plastics such as polypropylene hollow board,PE、Packing belt and leather and so on except hard plastic.

1.Strong and durable steel welding base, stainless steel feeding hopper and stainless steel plastic crusher can be optioned.

2.Thick and high precicion shaft can run smoothly  to prolong its lifetime.

3.Imported chrome steel double-sided edge cutter, durable with sharp and adjustable blade.

4.Optimal design knife plate,spirally distributed claw plate can disperse the strength and reduce the impact force when crushing materials, and make the claw knife's crushing force greater.

5.Its detachable design is easy to clean and maintenacelow noise with two layers structure which has sound insulation materials.

6.Equipped with motor overload and power supply protection system to ensure safe operation.

7.High efficiency, low energy consumption and lower production costs,thus improving production efficiency.

8.Reducing waste materials accumulation and the cost of transportation and storage.

9.Can be used for dry and wet materials. The size of crushed plastics can be changed by different screen mesh.


Specification

Model Rotor Size
ΦD*L(mm)
Capacity
(KGS/hr)
Outlet
ΦD*H (mm)
Feeding
Hopper
L*W(mm)
Motor Power
(KW)
Installation Size
L*W*H(mm)
Overall Size
L*W*H(mm)
Weight
(KGS)
PS-600  Φ420*600 400-700  Φ150*300 400-600 22 1450*1015*1920 1620*1380*2320 1800
PS-900 Φ540*900 700-1000  Φ150*300 600-900 37 1915*1370*2690 2128*1790*3050 3500
PS-1200 Φ540*1200 1000-1300 Φ150*300 600-1200 55 2230*1370*2690 2430*1790*3050 5600

Specification is subject to change without any notice.
